| Brand Name: | Brand Cast Bronze Plain Sleeve Bearing |
| Model Number: | Sleeve bearing type: |
| MOQ: | 500000 Piece/Pieces (Min. Order) |
| Price: | Negotiable |
| Payment Terms: | T/T, L/C |
| Supply Ability: | Cast Bronze Customized Bearings Manufacturing |
Powder metallurgy plain bearings, specifically sintered bronze bushings, are a crucial component in the operation of butterfly valves, particularly those conforming to the DIN standard with a nominal diameter (DN) of A50. These bushings are manufactured through a sintering process, which involves compressing metal powders and then heating them to fuse the particles tog, creating a solid but porous metal structure.
The sintered bronze material offers several advantages for butterfly valve applications. Its porous structure allows for the infiltration of lubricants, providing self-lubricating properties that reduce friction and wear. This results in longer service life and reduced maintenance requirements for the valve.
In addition, sintered bronze bushings exhibit excellent mechanical properties, including high strength and durability. They can withstand the rigorous operating conditions of butterfly valves, including high pressures, temperatures, and frequent movement. The material's corrosion resistance also ensures reliable performance in various environments.
When selecting sintered bronze bushings for butterfly valves, it is important to consider the specific requirements of the application. The bushings must fit precisely into the valve housing to ensure proper alignment and sealing. The material should also be compatible with the lubricants and fluids used in the system.
Installation and maintenance of sintered bronze bushings for butterfly valves require careful attention. Proper installation ensures that the bushings are securely in place and aligned correctly. Regular maintenance, including lubrication and inspection, helps to extend the service life of the bushings and maintain the optimal performance of the valve.
In summary, sintered bronze bushings manufactured through powder metallurgy are an excellent choice for butterfly valves, particularly those with a DN A50 DIN specification. Their self-lubricating properties, high strength, and durability make them suitable for demanding applications. With proper installation and maintenance, these bushings can provide reliable and long-lasting performance for butterfly valves.
VIIPLUS Metallurgy bearing is a bearing and made from metallurgy material. It is a mechanical component to permit constrained relative motion between two or more parts, especially linear or rotation movement.
The application of bearing with inserted graphite to large metallurgical crane.
VIIPLUS Bronze bearing materials have been affecting the metallurgical quality of early bearing failure of the main factors.
VIIPLUS bearings are widely used in valve,metallurgy, mining, petroleum, paper making, construction and other large machinery and equipment.
The development of self-lubricating composite bearing and trend of inlay material are introduced.
The VIIPLUS Company specializes in engine bearings, friction materials, sintered components and coatings.

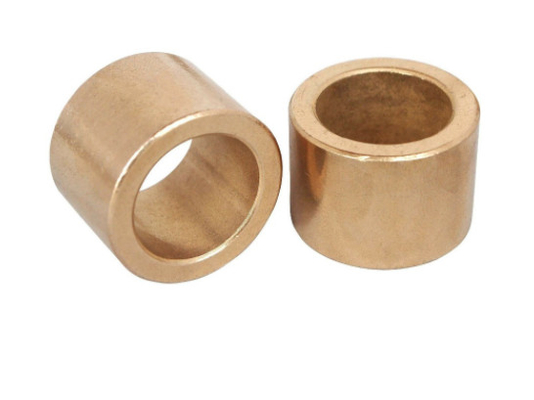

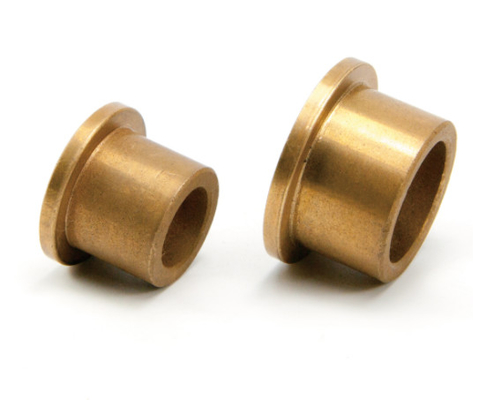

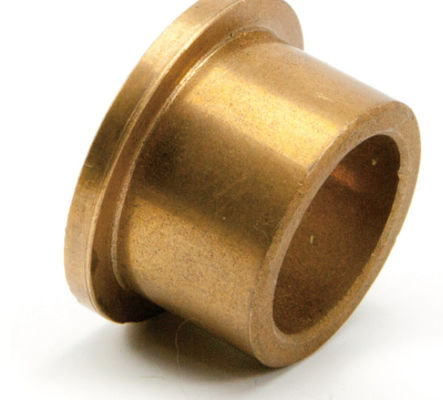

Sintered Bronze Bushings Guide Sleeve For Butterfly Valves , DN A50 DIN 30910

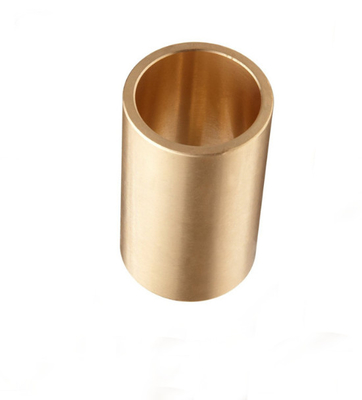

Sintered Bronze Cylindrical Oil Bushing
All the valve's internal self-lubricating bearings are sliding bearings, the whole material the use of carbon steel liner.'
Because of its superior performance, the friction in friction application fields become best material, such as sleeve bearing, sliding bearing, the valve seat, seals, pump wear ring, etc.
1. Copper-based, used in ventilator, office machinery, starter, dynamoelectric tool and aero-transport;
2. Iron-based, used in the low-velocity and high-pressure environment;
3. Iron-copper-based, used in high-velocity and high pressure environment;
4. Iron-copper-pb-based, used in middle(high)-pressure and middle(high)-velocity environment, similar to the copper-based.
As the leader of self-lubricating bushing manufacturers in China, we recognize high quality, competitive price and best service as the crucial factors for a successful corporation. Here advanced technology, equipments and management system are widely adopted to ensure the soonest delivery and first-class quality.
Lubricant fitting is provided to permit stem bushing lubrication for ease of operation.
Valve Upper and lower bushings are standard for smooth valve operation.
The most common applications in valves are, for stem material in butterfly valves, and backseat bushings and wedges in cast steel valves.
DN 50 - 80
DN 100 1000
DN 125 - 150
DN 200
DN 250 500
DN 300 – 350
DN 400
DN 450
DN 500
DN 600
The valve mainly by the valve main body, the transmission system, the hydraulic pressure stands, the electrically controlled box and so on four parts is composed.
The enough lubricant grease for gear operator shall be used before ex-works manufacturer's shop. The model number and brand of lubricant grease used shall be advised to customer.
OIL IMPREGNATED BRONZE BUSHINGS Bronze Spherical Bearing For Fan Powder Metal Sintered BRONZE METAL POWDER Spherical Bushing Slide Sintered Ring metal sintered fan bushing sintered metal lubrication plain bearing
Industrial Axial Fans bushings
Gravity Shatter Damper bushings
Alkatel Fans bushings
Duct Fans bushings
Avicuture Fans bushings
Centrifugal Fans bushings
Roof Fans bushings
Natural bushings
|
SAE 841 Powdered Metal Bronze, Sleeve Bearing |
|||||||||
|
Specifications SAE841 SLEEVE Bearing Oil Impregnated Bronze |
|||||||||
|
Material Powdered Metal / Oil Impregnated Bronze |
|||||||||
|
Material Standard SAE 841 |
|||||||||
|
Tolerances |
|||||||||
|
Inner Diameter Tolerance +.000 -.001 in |
|||||||||
|
Outside Diameter Tolerance+.000 -.001 in |
|||||||||
|
Overall Length Tolerance .005 in |
|||||||||
|
Chemical Composition- Copper (87-90%), Tin (8-9), Iron (1.0% Max) Carbon (0.1%), other elements less than 0.1% |
|||||||||
|
MPIF: CT-1000-K26 |
|||||||||
|
ASTM: B438 Grade 1, Type 2 Class A |
|||||||||
|
SAE 841 - Bronze Mil-B-5687 Type 1, Grade 1 |
|||||||||
|
Ideal for heavy loads at moderate speeds or light loads at high speeds - max Pv 50,000, P-Load 2,000, V-SFM-1,200 |
|||||||||
|
Self-lubricating - when in motion oil rises to the surface for lubrication and restores itself when at rest. |
|||||||||
|
After forming, sintering and sizing, the bearings are vacuum impregnated with SAE 30 oil that provides lubricant which is metered from the bearing to the shaft during rotation. |
|||||||||
|
Standard off-the-shelf oil impregnated bronze bearings should function satisfactorily in temperatures ranging from 10F to 220F. |
|||||||||
|
RoHS, REACH, DFARS compliant |
|
· Do not need or only very little machining |
|
· High usage rate of material(more than 95%) |
|
· Parts size consistency is good and stable. The precision can reach 0.01mm. |
|
· The material composition can be adjusted according to the customers’requirement of the parts performance. |
|
· Do the treatment on the surface of the parts according to customers’ requirement to improve the strength and hardness. |
|
· Due to the die forming, we can customize the complex shape or special profiled parts which other machining can not do. |
|
· Because suitable for mass production, the production efficiency is high and the cost is lower than machining. |
