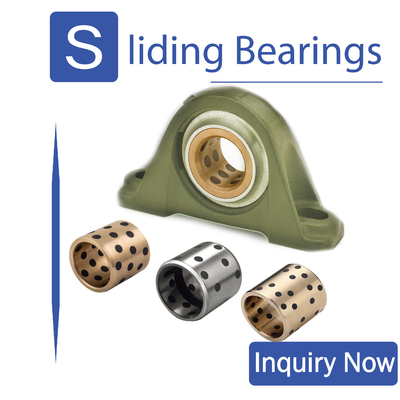

Pillow Blocks Matching Graphite Self Lubricating Bronze Bushings
| Place of Origin | gleitlagerbuchsen china |
|---|---|
| Brand Name | viiplus Graphite self-lubricating bearings |
| Certification | rosh iso9001 |
| Model Number | Graphite self-lubricating bearings |
| Minimum Order Quantity | negotiable |
| Price | negotiable |
| Packaging Details | Export Carton Wood Pallet Wooden Case |
| Delivery Time | 7-25 work days |
| Payment Terms | MoneyGram, Western Union, T/T |
| Supply Ability | bronze sleeve bushings, China, manufacturers, suppliers, factory, wholesale, Metallic Self Lubricating Bushings, Cast Iron Bearing, Sleeve Bushing, POM Bearing, Cast Iron Plain Bearing, Lubrication Bronze Bushing |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | Can Be Used For A Long Time Without Maintenance | Material | C86300+graphite |
|---|---|---|---|
| Application Field | Automobile Production Line, Hydraulic Engineering, Reservoir Gate, Injection Molding Machine, Continuous Casting Machine, Metallurgical Machinery, Mining Machinery | Size | It Can Be Designed According To The Standard Or According To The Customer's Requirements |
| Type | Sleeve | Lubrication | Graphite |
| Get A Better Quote | Tiffany@viiplus.com | Self-lubricating Bearing Bushing Manufacturer | Https://www.viiplus.com/ |
| High Light | Slit Oilless Bronze Bushing, Anti Fatigue Oilless Bronze Bushing, Maintenance Free Oilless Bronze Bushing | Gleitalger | A Plain Bearing, Or More Commonly Sliding Contact Bearing And Slide Bearing, Is The Simplest Type Of Bearing, Comprising Just A Bearing Surface And No Rolling Elements. Therefore, The Journal Slides Over The Bearing Surface. The Simplest Example Of A Plain |
| Bush Bearings Manufacturers Suppliers Exporters | Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/ | ||
| Highlight | bronze bushings grainger,bronze bush bearings |
||
Product Description
Pillow Blocks Matching Graphite Self-Lubricating Bronze Bushings are mechanical components that are designed to provide smooth and reliable rotational movement while supporting a rotating shaft. These pillow blocks are specifically paired with graphite self-lubricating bronze bushings, which offer several advantages over traditional lubrication methods.

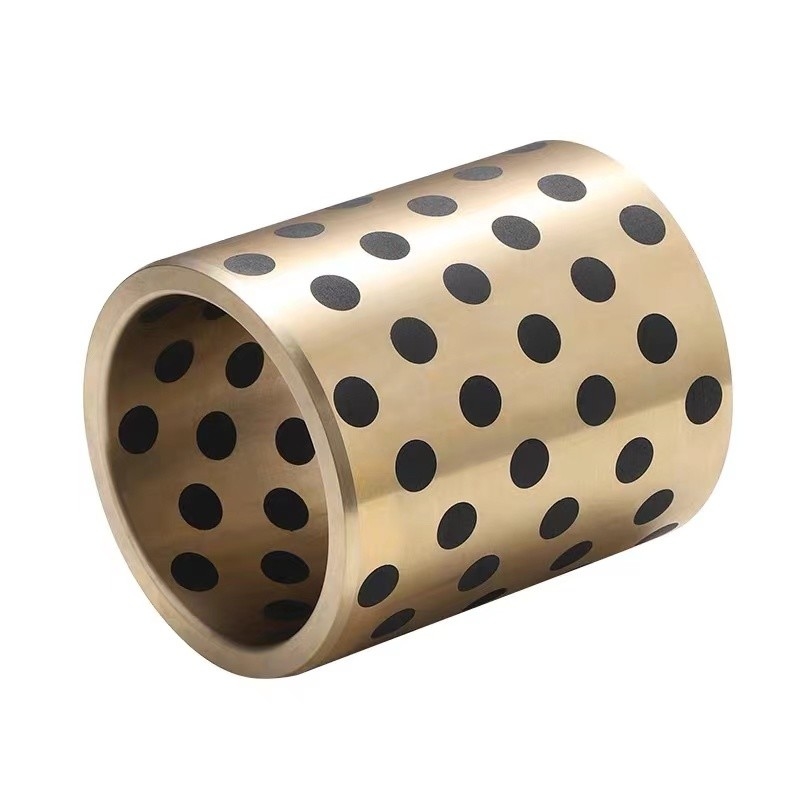

Graphite self-lubricating bronze bushings are made from a bronze alloy that contains graphite particles embedded within the material. These graphite particles act as natural lubricants, reducing friction and wear between the rotating shaft and the bushing surface. This eliminates the need for external lubrication, making the pillow block system more maintenance-free and reliable.
The pillow block housing is typically made from cast iron or steel and is designed to securely mount the bronze bushing in place. The housing also provides protection for the bushing, keeping it free from dirt, debris, and other contaminants that could potentially damage the surface.
The combination of the pillow block housing and the graphite self-lubricating bronze bushing creates a robust and reliable bearing system. These pillow blocks are commonly used in a wide range of industrial applications, including machinery, conveyors, pumps, and other rotating equipment.
In summary, pillow blocks matching graphite self-lubricating bronze bushings offer a maintenance-free and reliable bearing solution for rotating equipment. The graphite particles embedded in the bronze bushing provide natural lubrication, reducing friction and wear, while the pillow block housing securely mounts and protects the bushing.

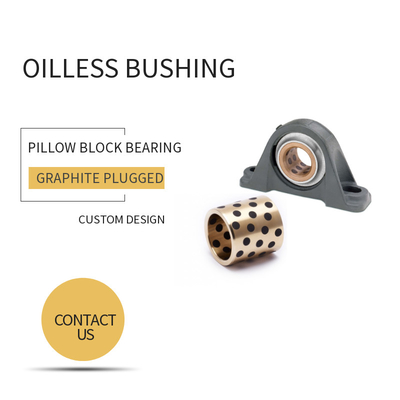

Oilless Bushing | Self-lubricating bearings, Maintenance-free Graphite Plugged Bronze Bearing
Choose from our selection of pillow block bushings, including mounted sleeve bearings, graphite plugged sleeve bearings, and more.

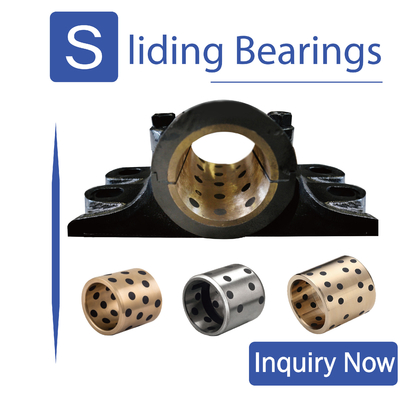

Pillow block bearing, self lubricating
Pillow block bearing Properties
| Base Material: | Special Brass (pillow block bearing) |
| Self-lubricating: | Yes |
| Lubricant: | Graphite |
| Surface Pressure P: | 100 N/mm² |
| Sliding speed v: | 30 m/min |
| P*v-value: | 200 N/mm² x m/min |
| Operating temperature: | -50°C / +200°C (max. 300°C) |
| Friction coefficient: | 0,07 |
Pillow - Blocks graphite self-lubricating bearing introduction
Graphite self-lubricating bearing, high-performance maintenance-free bearing, graphite bearing sleeve has high wear resistance and corrosion resistance. Graphite particles generated in graphite work can lubricate the bearing well, but it is not suitable for the working environment with environmental requirements.
You can choose the bearing structure
Type:-Flanged
-Solid Bronze
-Welded Joint
-Split Joint
-Clench Lock
-Sintered / Powder Metal
-Graphite Impregnated
You can choose from graphite self-lubricating bearing materials there
| GCr15(GB/T18254-2016)=52100(ASTM/UNS)=100Cr6(DIN)Chemical composition quality/% | ||||
| C | Si | Mn | Mo | Cr |
| 0.95-1.05 | 0.15-0.35 | 0.25-0.45 | ≤0.10 | 1.40-1.65 |
| ZCuSn6Zn6Pb3(GB1776-87)=ZQSn6-6-3(GB 1176-74)=GB-CuSn5Zn5Pb5(DIN)=C83600(ASTM) Chemical composition quality/% | |||||||||
| Cu | Sn | Al | Fe | Mn | Ni | Pb | Si | P | Zn |
| 84.0-86.0 | 4.0-6.0 | ma'x 0.005 | max 0.3 | - | max 1 | max 4.0-6.0 | max 0.005 | max 0.05 | max 4.0-6.0 |
| CuZn25A16Fe3Mn3(GB/T 1176-1987)=G-CuZn25Al5(DIN)=C86300(ASTM) Chemical composition quality/% | |||||||||
| Chemical composition quality/% | |||||||||
| Cu | Sn | Al | Fe | Mn | Ni | Pb | Si | P | Zn |
| 60-66 | 0.2 | 5.0-7.5 | 2.0-4.0 | 2.5-5.0 | 1 | 0.2 | _ | _ | _ |
| VSB-JDB-1 | VSB-JDB-2 | VSB-JDB-3 | VSB-JDB-4 | VSB-JDB-5 | |||
|---|---|---|---|---|---|---|---|
| VSB-JDB-2 | VSB-JDB-22 | VSB-JDB-23 | |||||
| GB1776-87 | ZCuZn25 Al6Fe3Mn3 |
ZCuSn6Zn6Pb3 | ZCuAl10Fe3 | ZCuSu10P1 | Steel+ ZCuSn6Zn6Pb3 | HT250 | GCr15 |
| ISO1338 | GCuZn25 Al6Fe3Mn3 |
GCuSn6Zn6Pb3 | GCuAl10Fe3 | - | Steel+ CuSn6Zn6Pb3 Fe3Ni5 |
- | B1 |
| DIN | G-CuZn25 Al5 |
GB-CuSn5Zn5Pb5 | GB-CuAl10Ni | GB-CuSn10 | Steel+ CuSn6Zn6Pb3Ni | - | 100Cr6 |
| JIS | HBsC4 | BC6 | AIBC3 | BC3 | BC6 | FC250 | SUJ2 |
| ASTM/UNS | C86300 | C83600 | C95500 | C90500 | C83600 | Class40 | 52100 |
| (BS) | HTB2 | LG2 | AB1 | PB4 | LG2 | - | - |
You need to know more about the products you can choose
The following PDF is about the product information of CuZn25A16Fe3Mn3 (C86300) in our company. You can choose different product types or raw materials, or you can customize the size and arrangement of graphite. In general, our company produces products according to ISO 4379 standard.
Graphite self-lubricating bearing.pdf
| haft | housing | ID | OD | Wall thickness | Oil hole | L 0 -0.40 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| h8 | H7 | d | D | T | h- | 10 | 12 | 15 | 20 | 25 | 30 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 10 | 0 -0.022 |
12 | +0.018 0 |
10 | 12 | 0.980 0.955 |
4 | 1010 | 1012 | 1015 | 1020 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 12 | 0 -0.027 |
14 | " | 12 | 14 | " | " | 1210 | 1212 | 1215 | 1220 | 1225 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 14 | " | 16 | " | 14 | 16 | " | " | 1415 | 1420 | 1425 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 15 | " | 17 | " | 15 | 17 | " | " | 1510 | 1512 | 1515 | 1525 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 16 | " | 18 | " | 16 | 18 | " | " | 1615 | 1620 | 1625 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 18 | " | 20 | +0.021 0 |
18 | 20 | " | " | 1815 | 1820 | 1825 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 20 | 0 -0.033 |
23 | " | 20 | 23 | 1.475 1.445 |
" | 2015 | 2020 | 2025 | 2030 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 22 | " | 25 | " | 22 | 25 | " | 6 | 2215 | 2220 | 2225 | 2230 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 24 | " | 27 | " | 24 | 27 | " | " | 2415 | 2420 | 2425 | 2430 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 25 | " | 28 | " | 25 | 28 | " | " | 2515 | 2520 | 2525 | 2530 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 28 | " | 32 | +0.025 0 |
28 | 32 | 1.970 1.935 |
" | 2820 | 2825 | 2830 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 30 | " | 34 | " | 30 | 34 | " | 3020 | 3030 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 32 | 0 -0.039 |
36 | " | 32 | 36 | " | " | 3220 | 3230 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 35 | " | 39 | " | 35 | 39 | " | " | 3520 | 3530 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 36 | " | 40 | " | 36 | 40 | " | " | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 37 | " | 41 | " | 37 | 41 | " | " | 3720 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 40 | " | 44 | " | 40 | 44 | " | 8 | 4020 | 4030 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 45 | " | 50 | " | 45 | 50 | 2.460 2.415 |
" | 4520 | 4530 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 50 | " | 55 | +0.030 0 |
50 | 55 | " | " | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 55 | 0 -0.046 |
60 | " | 55 | 60 | " | " | 5520 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 60 | " | 65 | " | 60 | 65 | " | " | |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
