CuSn8P Flanged Bronze Bushing Metric Size

Name: CuSn8P Flanged Bronze Bushing Metric Size
Brand: JIAXING VIIPLUS INTERNATIO NAL TRADING CO.,LTD
SKU: Wrapped bronze bushing
Price: 2 USD
Availability: InStock

Brand Name:	VIIPLUS
Model Number:	Wrapped bronze bushing
MOQ:	Standard Size Bushing No Minimum Order Quantity
Price:	Bushings High Quality Price Ratio B2B
Payment Terms:	T/T
Supply Ability:	bronze sleeve bushings, China, manufacturers, suppliers, factory, wholesale, Metallic Self Lubricating Bushings, Cast Iron Bearing, Sleeve Bushing, POM Bearing, Cast Iron Plain Bearing, Lubrication Bronze Bushing

Detail Information

Product Description

Detail Information

Place of Origin:

gleitlagerbuchsen china

Certification:

ISO 9001

Features:

High Load Capability, Low Weight, Good Corrosion Resistance

Type:

Sleeve, Flange

Material:

CuSn8, CuSn6, Customized

Samples:

Avaliable

Size:

Custom Size

Design:

Custom Designs

Other Type:

Washer

Processing Method:

Wrapped

Get A Better Quote:

Tiffany@viiplus.com

Self-lubricating Bearing Bushing Manufacturer:

Https://www.viiplus.com/

High Light::

Slit Oilless Bronze Bushing, Anti Fatigue Oilless Bronze Bushing, Maintenance Free Oilless Bronze Bushing

Gleitalger:

A Plain Bearing, Or More Commonly Sliding Contact Bearing And Slide Bearing, Is The Simplest Type Of Bearing, Comprising Just A Bearing Surface And No Rolling Elements. Therefore, The Journal Slides Over The Bearing Surface. The Simplest Example Of A Plain

Bush Bearings Manufacturers Suppliers Exporters:

Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/

Packaging Details:

EXPORT CARTON WOOD PALLET WOODEN CASE

Supply Ability:

bronze sleeve bushings, China, manufacturers, suppliers, factory, wholesale, Metallic Self Lubricating Bushings, Cast Iron Bearing, Sleeve Bushing, POM Bearing, Cast Iron Plain Bearing, Lubrication Bronze Bushing

Highlight:

CuSn8P Flanged Bronze Bushing

ISO 3547 Wrapped Bronze Bushing

HB150 Flanged Bronze Bushing

Product Description

CuSn8P Flanged Bronze Bushing Metric Size refers to a type of bronze bushing that is made from a copper-tin alloy containing 8% tin (CuSn8) and is equipped with a flange for easy installation or additional support. The "metric size" indicates that the dimensions and specifications of this bushing conform to the metric system of measurement, which is widely used in many parts of the world.

Bronze bushings are commonly used in applications where there is a need for wear resistance, corrosion resistance, and good mechanical properties. The addition of tin to copper enhances the alloy's strength, hardness, and wear resistance, making it suitable for use in bearings, bushings, and other components that require durability and stability.

The flange on the bronze bushing provides a wider surface area for installation, allowing for better distribution of loads and increased stability. This can be especially useful in applications where the bushing is subject to high loads or vibrations.

When selecting a CuSn8P flanged bronze bushing for a specific application, it is important to consider the required dimensions, tolerances, and other specifications to ensure that the bushing will fit and perform as expected.

Agricultural Machine Parts Cusn8 Bronze Bushings

Finding the right agricultural equipment parts bronze bushings at the right price can be tough. With thousands of dealers across the country we can help you locate the bronze bushings you are looking for. Search our inventory of bronze bushings to match your equipment.

Quality bronze bushings made by the bronzegleitlager.com Order Today!

One-stop service and specialized in a variety of industry, such as agricultural machinery parts bronze bushings. Providing high quality OEM bronze bushings with professional industrial suggestions.

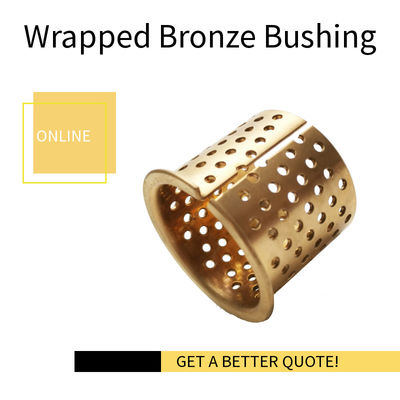

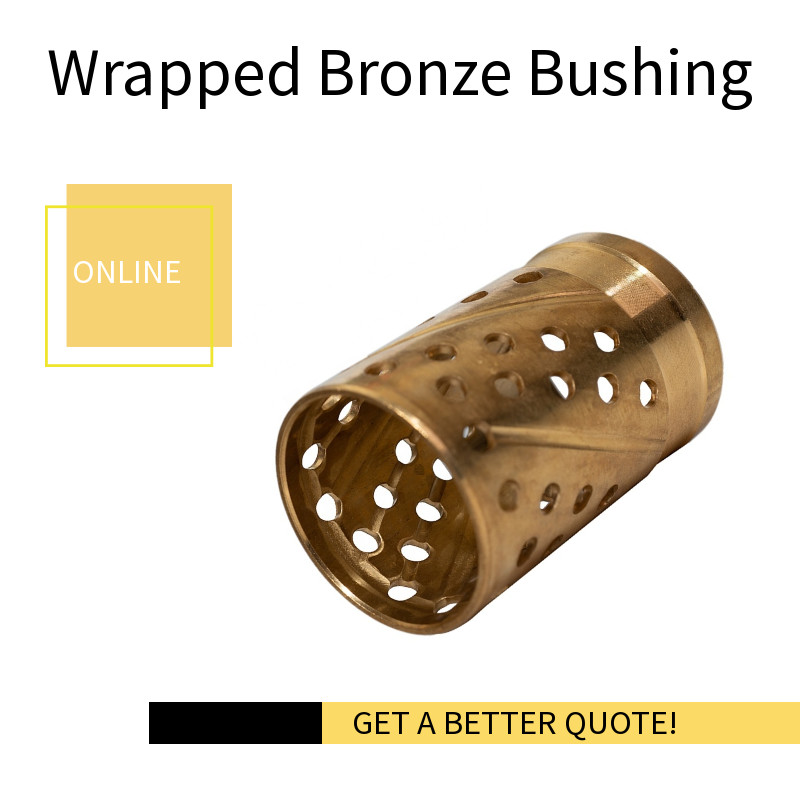

Wrapped Split Sleeve Bronze Bushing Bearing with Oil Holes 092

The wrapped bronze bushing is made of tin-bronze CuSn8P.

These bearings are wrapped by cold-formed homogeneous bronze (CuSn8), which can achieve exceptional material properties. Depending on the different lubrication conditions, we can provide diamond shaped lubrication cavities (grease) and contain holes (oil). These designs can quickly form a lubricating film at the start of movement and then reduce friction during operation.

Wrapped bronze bushings with through holes

WRAPPED BRONZE BUSHING WITH THROUGH HOLES 092

Structure

Bronze bearings made of CuSn8 with through-holes

Microsection

CuSn8 with composition (Sn:8%, P<0.05%, Cu:Rest)

Wrapped bronze bushings featrue

Wrapped bronze bushings are made entirely of bronze.
They are particularly suitable for applications that require relubrication due to dirty environments.
The sliding surface is provided with lubrication holes that contribute to improved lubrication performance.
This bushing is manufactured according to ISO 3547 and DIN 1494.

Wrapped bronze bushings advantages

Insensitive to dirty environments
Resistant to shock loads and vibrations at low speeds
Good resistance to corrosive conditions

Wrapped bronze bushings material

Wrapped bronze is made entirely of CuSn6.5 or CuSn8 bronze. The sleeves are made of strips which are then calibrated and wrapped.
The work surface is machined and has circular holes all over the wall.
These recesses serve as grease reservoirs where grease is initially filled and gradually released during operation.

Wrapped bronze bushings 092 oil holes type

wrapped bronze bushing 092 Oil Indentations Holes

Wrapped bronze bushings main applications

Wrapped bronze bushings are suitable for both radial and axial movements.
Bushings are well suited to machines in dirty environments with shock loads and / or vibrations.

Examples of applications are:
Agricultural machinery
Hoisting equipment
Construction machinery
Forest machinery

Wrapped bronze bushings lubrication

Lubrication improves sliding properties, reduces wear and prevents corrosion, as the metal surfaces of the bushing and shaft are separated from each other.
Wrapped bronze bushings are suggested to be lubricated with grease or oil. All commonly used greases can be used.
Seals are recommended when the bearing is to be used in an aggressive environment.

Wrapped bronze bushings Properties

Economical solution for bronze bearings due to low wall thickness. High load capacity and good stability with low abrasion. Suitable for harsh working conditions, good corrosion resistance.

Product Type:	Wrapped bronze bushing
Application :	Agricultural
Material:	CuSn8P
Density:	8.8g/cm3
Max Dynamic Load:	120N/mm²
Max Linear Velocity(Grease):	2.5m/s
Max PV Value Grease :	2.8N/mm²·m/s
Pressure Strength	>460N/mm²
Yield Strength N/mm2	>280N/mm2
Hardness:	90-150
Mating Axis	Hardness ≥50, Roughness 0.4-1.0
Working Temperature	-40~+125℃
Friction Coefficient	0.06~0.15
Linear Expansion Coefficient	18.5×10-6/K
coefficient of heat conduction	58W/m·K
In addition to the standard product catalog is displayed, we provide non-standard product or to order according to customer requirements.

Flanged Wrapped Bronze Bushing With Through Holes - Metric Size

Product	Bearing Type	Shaft Dia., Nominal (d) (mm)	Bearing Outside Diameter, Nominal(Do) (mm)	Bearing Length, Nominal (B) (mm)	Wall Thickness (S3) (mm)
Wrapped bronze bushing Cusn8 material F6540	flanged bronze bushings	65	70	40	2.5
Wrapped bronze bushing Cusn8 material F6560	flanged bronze bushings	65	70	60	2.5
Wrapped bronze bushing Cusn8 material F17080	flanged bronze bushings	170	175	80	2.5
Wrapped bronze bushing Cusn8 material F9070	flanged bronze bushings	90	95	70	2.5
Wrapped bronze bushing Cusn8 material F19070	flanged bronze bushings	190	195	70	2.5
Wrapped bronze bushing Cusn8 material F11060	flanged bronze bushings	110	115	60	2.5
Wrapped bronze bushing Cusn8 material F7070	flanged bronze bushings	70	75	80	2.5
Wrapped bronze bushing Cusn8 material F8040	flanged bronze bushings	80	85	40	2.5
Wrapped bronze bushing Cusn8 material F12070	flanged bronze bushings	120	125	70	2.5
Wrapped bronze bushing Cusn8 material F7040	flanged bronze bushings	70	75	40	2.5
Wrapped bronze bushing Cusn8 material F25080	flanged bronze bushings	250	255	80	2.5
Wrapped bronze bushing Cusn8 material F6550	flanged bronze bushings	65	70	50	2.5
Wrapped bronze bushing Cusn8 material F30070	flanged bronze bushings	300	305	70	2.5
Wrapped bronze bushing Cusn8 material F9090	flanged bronze bushings	90	95	100	2.5
Wrapped bronze bushing Cusn8 material F11090	flanged bronze bushings	110	115	90	2.5
Wrapped bronze bushing Cusn8 material F20090	flanged bronze bushings	200	205	90	2.5
Wrapped bronze bushing Cusn8 material F25060	flanged bronze bushings	250	255	60	2.5
Wrapped bronze bushing Cusn8 material F16080	flanged bronze bushings	160	165	80	2.5
Wrapped bronze bushing Cusn8 material F13090	flanged bronze bushings	130	135	90	2.5
Wrapped bronze bushing Cusn8 material F6040	flanged bronze bushings	60	65	40	2.5
Wrapped bronze bushing Cusn8 material F3525	flanged bronze bushings	35	39	25	2
Wrapped bronze bushing Cusn8 material F4550	flanged bronze bushings	45	50	50	2.5
Wrapped bronze bushing Cusn8 material F16060	flanged bronze bushings	160	165	60	2.5
Wrapped bronze bushing Cusn8 material F3020	flanged bronze bushings	30	34	20	2
Wrapped bronze bushing Cusn8 material F11080	flanged bronze bushings	110	115	80	2.5
Wrapped bronze bushing Cusn8 material F3030	flanged bronze bushings	30	34	30	2
Wrapped bronze bushing Cusn8 material F6535	flanged bronze bushings	65	70	35	2.5
Wrapped bronze bushing Cusn8 material F19080	flanged bronze bushings	190	195	80	2.5
Wrapped bronze bushing Cusn8 material F7540	flanged bronze bushings	75	80	40	2.5
Wrapped bronze bushing Cusn8 material F10070	flanged bronze bushings	100	105	70	2.5
Wrapped bronze bushing Cusn8 material F8070	flanged bronze bushings	80	85	70	2.5
Wrapped bronze bushing Cusn8 material F5035	flanged bronze bushings	50	55	35	2.5
Wrapped bronze bushing Cusn8 material F20060	flanged bronze bushings	200	205	60	2.5
Wrapped bronze bushing Cusn8 material F8035	flanged bronze bushings	80	85	35	2.5
Wrapped bronze bushing Cusn8 material F26560	flanged bronze bushings	265	270	60	2.5
Wrapped bronze bushing Cusn8 material F2525	flanged bronze bushings	25	28	25	1.5
Wrapped bronze bushing Cusn8 material F7050	flanged bronze bushings	70	75	50	2.5
Wrapped bronze bushing Cusn8 material F26580	flanged bronze bushings	265	270	80	2.5
Wrapped bronze bushing Cusn8 material F5530	flanged bronze bushings	55	60	30	2.5
Wrapped bronze bushing Cusn8 material F7560	flanged bronze bushings	75	80	60	2.5
Wrapped bronze bushing Cusn8 material F19060	flanged bronze bushings	190	195	60	2.5
Wrapped bronze bushing Cusn8 material F6030	flanged bronze bushings	60	65	30	2.5
Wrapped bronze bushing Cusn8 material F17070	flanged bronze bushings	170	175	70	2.5
Wrapped bronze bushing Cusn8 material F6530	flanged bronze bushings	65	70	30	2.5
Wrapped bronze bushing Cusn8 material F7570	flanged bronze bushings	75	80	70	2.5
Wrapped bronze bushing Cusn8 material F20070	flanged bronze bushings	200	205	70	2.5
Wrapped bronze bushing Cusn8 material F13060	flanged bronze bushings	130	135	60	2.5
Wrapped bronze bushing Cusn8 material F22590	flanged bronze bushings	225	230	90	2.5
Wrapped bronze bushing Cusn8 material F14080	flanged bronze bushings	140	145	80	2.5
Wrapped bronze bushing Cusn8 material F20080	flanged bronze bushings	200	205	80	2.5
Wrapped bronze bushing Cusn8 material F12080	flanged bronze bushings	120	125	80	2.5
Wrapped bronze bushing Cusn8 material F19090	flanged bronze bushings	190	195	90	2.5
Wrapped bronze bushing Cusn8 material F8060	flanged bronze bushings	80	85	60	2.5
Wrapped bronze bushing Cusn8 material F13070	flanged bronze bushings	130	135	70	2.5
Wrapped bronze bushing Cusn8 material F15090	flanged bronze bushings	150	155	90	2.5
Wrapped bronze bushing Cusn8 material F28590	flanged bronze bushings	285	285	90	2.5
Wrapped bronze bushing Cusn8 material F6035	flanged bronze bushings	60	65	35	2.5
Wrapped bronze bushing Cusn8 material F13080	flanged bronze bushings	130	135	80	2.5
Wrapped bronze bushing Cusn8 material F5040	flanged bronze bushings	50	55	40	2.5
Wrapped bronze bushing Cusn8 material F30080	flanged bronze bushings	300	305	80	2.5
Wrapped bronze bushing Cusn8 material F15070	flanged bronze bushings	150	155	70	2.5
Wrapped bronze bushing Cusn8 material F4025	flanged bronze bushings	40	44	25	2
Wrapped bronze bushing Cusn8 material F18080	flanged bronze bushings	180	185	80	2.5
Wrapped bronze bushing Cusn8 material F28560	flanged bronze bushings	285	285	60	2.5
Wrapped bronze bushing Cusn8 material F28580	flanged bronze bushings	285	285	80	2.5
Wrapped bronze bushing Cusn8 material F18060	flanged bronze bushings	180	185	60	2.5
Wrapped bronze bushing Cusn8 material F26570	flanged bronze bushings	265	270	70	2.5
Wrapped bronze bushing Cusn8 material F4540	flanged bronze bushings	45	50	40	2.5
Wrapped bronze bushing Cusn8 material F5050	flanged bronze bushings	50	55	50	2.5
Wrapped bronze bushing Cusn8 material F15060	flanged bronze bushings	150	155	60	2.5
Wrapped bronze bushing Cusn8 material F4535	flanged bronze bushings	45	50	35	2.5
Wrapped bronze bushing Cusn8 material F12090	flanged bronze bushings	120	125	90	2.5
Wrapped bronze bushing Cusn8 material F30090	flanged bronze bushings	300	305	90	2.5
Wrapped bronze bushing Cusn8 material F22580	flanged bronze bushings	225	230	80	2.5
Wrapped bronze bushing Cusn8 material F11070	flanged bronze bushings	110	115	70	2.5
Wrapped bronze bushing Cusn8 material F25070	flanged bronze bushings	250	255	70	2.5
Wrapped bronze bushing Cusn8 material F6060	flanged bronze bushings	60	65	60	2.5
Wrapped bronze bushing Cusn8 material F8050	flanged bronze bushings	80	85	50	2.5
Wrapped bronze bushing Cusn8 material F8080	flanged bronze bushings	80	85	80	2.5
Wrapped bronze bushing Cusn8 material F7060	flanged bronze bushings	70	75	60	2.5
Wrapped bronze bushing Cusn8 material F4530	flanged bronze bushings	45	50	30	2.5
Wrapped bronze bushing Cusn8 material F14090	flanged bronze bushings	140	145	90	2.5
Wrapped bronze bushing Cusn8 material F9060	flanged bronze bushings	90	95	60	2.5
Wrapped bronze bushing Cusn8 material F16070	flanged bronze bushings	160	165	70	2.5
Wrapped bronze bushing Cusn8 material F4035	flanged bronze bushings	40	44	35	2
Wrapped bronze bushing Cusn8 material F3535	flanged bronze bushings	35	39	35	2
Wrapped bronze bushing Cusn8 material F14070	flanged bronze bushings	140	145	70	2.5
Wrapped bronze bushing Cusn8 material F18070	flanged bronze bushings	180	185	70	2.5
Wrapped bronze bushing Cusn8 material F26590	flanged bronze bushings	265	270	90	2.5
Wrapped bronze bushing Cusn8 material F14060	flanged bronze bushings	140	145	60	2.5
Wrapped bronze bushing Cusn8 material F17060	flanged bronze bushings	170	175	60	2.5
Wrapped bronze bushing Cusn8 material F16090	flanged bronze bushings	160	165	90	2.5
Wrapped bronze bushing Cusn8 material F5030	flanged bronze bushings	50	55	30	2.5
Wrapped bronze bushing Cusn8 material F10050	flanged bronze bushings	100	105	50	2.5
Wrapped bronze bushing Cusn8 material F10080	flanged bronze bushings	100	105	80	2.5
Wrapped bronze bushing Cusn8 material F7535	flanged bronze bushings	75	80	35	2.5
Wrapped bronze bushing Cusn8 material F15080	flanged bronze bushings	150	155	80	2.5
Wrapped bronze bushing Cusn8 material F9050	flanged bronze bushings	90	95	50	2.5
Wrapped bronze bushing Cusn8 material F2515	flanged bronze bushings	25	28	15	1.5
Wrapped bronze bushing Cusn8 material F28570	flanged bronze bushings	285	285	70	2.5
Wrapped bronze bushing Cusn8 material F25090	flanged bronze bushings	250	255	90	2.5
Wrapped bronze bushing Cusn8 material F5535	flanged bronze bushings	55	60	35	2.5
Wrapped bronze bushing Cusn8 material F7035	flanged bronze bushings	70	75	35	2.5
Wrapped bronze bushing Cusn8 material F6050	flanged bronze bushings	60	65	50	2.5
Wrapped bronze bushing Cusn8 material F10060	flanged bronze bushings	100	105	60	2.5
Wrapped bronze bushing Cusn8 material F3025	flanged bronze bushings	30	34	25	2
Wrapped bronze bushing Cusn8 material F3520	flanged bronze bushings	35	39	20	2
Wrapped bronze bushing Cusn8 material F5540	flanged bronze bushings	55	60	40	2.5
Wrapped bronze bushing Cusn8 material F4030	flanged bronze bushings	40	44	30	2
Wrapped bronze bushing Cusn8 material F10090	flanged bronze bushings	100	105	90	2.5
Wrapped bronze bushing Cusn8 material F22560	flanged bronze bushings	225	230	60	2.5
Wrapped bronze bushing Cusn8 material F7550	flanged bronze bushings	75	80	50	2.5
Wrapped bronze bushing Cusn8 material F17090	flanged bronze bushings	170	175	90	2.5
Wrapped bronze bushing Cusn8 material F11050	flanged bronze bushings	110	115	50	2.5
Wrapped bronze bushing Cusn8 material F4040	flanged bronze bushings	40	44	40	2
Wrapped bronze bushing Cusn8 material F22570	flanged bronze bushings	225	230	70	2.5
Wrapped bronze bushing Cusn8 material F2520	flanged bronze bushings	25	28	20	1.5
Wrapped bronze bushing Cusn8 material F9080	flanged bronze bushings	90	95	80	2.5
Wrapped bronze bushing Cusn8 material F5550	flanged bronze bushings	55	60	50	2.5
Wrapped bronze bushing Cusn8 material F12060	flanged bronze bushings	120	125	60	2.5
Wrapped bronze bushing Cusn8 material F3530	flanged bronze bushings	35	39	30	2

Maintenance

These are low-maintenance bushings. Pre-lubrication is necessary during assembly, after that periodic lubrication with oil or grease is mandatory.

Range of application

Agriculture machinery, truck cranes & construction machinery, suitable for impact loads.

bronze bushing application - equipment manchinery - tractor

Tags:

Oilless Bushes

Solid Bronze Bearing

Wrapped Bronze Bearings

Wrapped Bronze Bushings

Graphite Plugged Bushings

Graphite Bronze Bearing

Bronze Sleeve Bushings

Self Lubricating Plain Bearing

Lined Bushing

Bronze Gleitlager

Polymer Plain Bearings

POM Bushing

Bimetal Bearing Bushes

Bronze Plain Bearings

Self Lube Wear Plates

Stainless Steel Bushings

Cast Bronze Bushings

Bronze Bushing Material

Valve Bushing

Self Lubricating Bronze Bushings

Flanged Sleeve Bearing

Dry Sliding Bearing

Oilless Bushes

Solid Bronze Bearing

Wrapped Bronze Bearings

Wrapped Bronze Bushings

Graphite Plugged Bushings

Graphite Bronze Bearing

Bronze Sleeve Bushings

Self Lubricating Plain Bearing

Lined Bushing

Bronze Gleitlager

Polymer Plain Bearings

POM Bushing

Bimetal Bearing Bushes

Bronze Plain Bearings

Self Lube Wear Plates

Stainless Steel Bushings

Cast Bronze Bushings

Bronze Bushing Material

Valve Bushing

Self Lubricating Bronze Bushings

Flanged Sleeve Bearing

Dry Sliding Bearing

CuSn8P Flanged Bronze Bushing Metric Size

CuSn8P Flanged Bronze Bushing Metric Size

CuSn8P Flanged Bronze Bushing

ISO 3547 Wrapped Bronze Bushing

HB150 Flanged Bronze Bushing

Agricultural Machine Parts Cusn8 Bronze Bushings

Finding the right agricultural equipment parts bronze bushings at the right price can be tough. With thousands of dealers across the country we can help you locate the bronze bushings you are looking for. Search our inventory of bronze bushings to match your equipment.

Quality bronze bushings made by the bronzegleitlager.com Order Today!

Wrapped Split Sleeve Bronze Bushing Bearing with Oil Holes 092

The wrapped bronze bushing is made of tin-bronze CuSn8P.

Wrapped bronze bushings with through holes

Structure

Microsection

Wrapped bronze bushings featrue

Wrapped bronze bushings advantages

Wrapped bronze bushings material

Wrapped bronze bushings 092 oil holes type

Wrapped bronze bushings main applications

Wrapped bronze bushings lubrication

Wrapped bronze bushings Properties

Flanged Wrapped Bronze Bushing With Through Holes - Metric Size

Maintenance

Range of application
