| Brand Name: | viiplus Self-lubricating composite bearing |
| Model Number: | High performance pom oil-free self-lubricating bearings |
| MOQ: | negotiate |
| Price: | negotiate |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | L/C, T/T, Western Union |

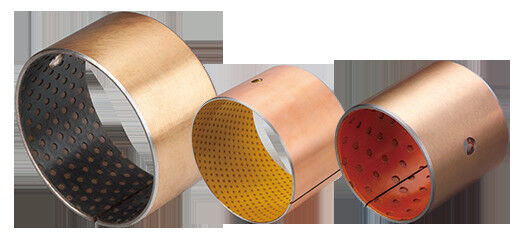

PAP P10 POM No-Oil Polymer Plain Bearings with Self-Lubricating Properties are designed to provide reliable and efficient operation without the need for external lubrication. These bearings are made from high-quality POM (Polyoxymethylene) material, which offers excellent mechanical properties, such as high stiffness and strength, as well as good wear resistance.
The self-lubricating feature of these bearings eliminates the need for regular lubrication, reducing maintenance costs and downtime. This is achieved through the unique properties of the POM material, which has inherent lubrication characteristics that allow for smooth operation even under high loads and speeds.
The PAP P10 designation refers to the specific type and grade of the bearing, ensuring compatibility with various applications and operating conditions. Wh you're upgrading existing machinery or installing new equipment, these self-lubricating polymer plain bearings are an ideal choice for improving performance and reliability.
Contact us today to learn more about PAP P10 POM No-Oil Polymer Plain Bearings with Self-Lubricating Properties and how they can enhance the efficiency and longevity of your machinery. Our team of experts is ready to assist you with any questions or requirements you may have.
| Dimensions (mm) | Dimensions (mm) | |||||||||
| Product No. | d | D | l±0.25 | H | Product No. | d | D | l±0.25 | H | |
| PAP0608-P10 Plain Bush | 6 | 8 | 8 | • | PAP10 Plain Bush10-P10 Plain Bush | 20 | 23 | 10 | 4 | |
| PAP0610-P10 Plain Bush | 6 | 8 | 10 | • | PAP10 Plain Bush12-P10 Plain Bush | 20 | 23 | 12 | 4 | |
| PAP0710-P10 Plain Bush | 7 | 9 | 10 | • | PAP10 Plain Bush15-P10 Plain Bush | 20 | 23 | 15 | 4 | |
| PAP0808-P10 Plain Bush | 8 | 10 | 8 | 4 | PAP10 Plain Bush17-P10 Plain Bush | 20 | 23 | 17 | 4 | |
| PAP0810-P10 Plain Bush | 8 | 10 | 10 | 4 | PAP10 Plain Bush20-P10 Plain Bush | 20 | 23 | 20 | 4 | |
| PAP0812-P10 Plain Bush | 8 | 10 | 12 | 4 | PAP10 Plain Bush25-P10 Plain Bush | 20 | 23 | 25 | 4 | |
| PAP10 Plain Bush08-P10 Plain Bush | 10 | 12 | 8 | 4 | PAP10 Plain Bush30-P10 Plain Bush | 20 | 23 | 30 | 4 | |
| PAP10 Plain Bush10-P10 Plain Bush | 10 | 12 | 10 | 4 | PAP2215-P10 Plain Bush | 22 | 25 | 15 | 6 | |
| PAP10 Plain Bush12P10 Plain Bush | 10 | 12 | 12 | 4 | PAP2220-P10 Plain Bush | 22 | 25 | 20 | 6 | |
| PAP10 Plain Bush15-P10 Plain Bush | 10 | 12 | 15 | 4 | PAP2222 P10 Plain Bush | 22 | 25 | 22 | 6 | |
| PAP10 Plain Bush20-P10 Plain Bush | 10 | 12 | 20 | 4 | PAP2225-P10 Plain Bush | 22 | 25 | 25 | 6 | |
| PAP1210-P10 Plain Bush | 12 | 14 | 10 | 4 | PAP2230-P10 Plain Bush | 22 | 25 | 30 | 6 | |
| PAP1212P10 Plain Bush | 12 | 14 | 12 | 4 | PAP2415-P10 Plain Bush | 24 | 27 | 15 | 6 | |
| PAP1215-P10 Plain Bush | 12 | 14 | 15 | 4 | PAP2420-P10 Plain Bush | 24 | 27 | 20 | 6 | |
| PAP1220-P10 Plain Bush | 12 | 14 | 20 | 4 | PAP2425-P10 Plain Bush | 24 | 27 | 25 | 6 | |
| PAP1225-P10 Plain Bush | 12 | 14 | 25 | 4 | PAP2430-P10 Plain Bush | 24 | 27 | 30 | 6 | |
| PAP1310-P10 Plain Bush | 13 | 15 | 10 | 4 | PAP2510-P10 Plain Bush | 25 | 28 | 10 | 6 | |
| PAP1414-P10 Plain Bush | 14 | 16 | 14 | 4 | PAP2515-P10 Plain Bush | 25 | 28 | 15 | 6 | |
| PAP1415P10 Plain Bush | 14 | 16 | 15 | 4 | PAP2520-P10 Plain Bush | 25 | 28 | 20 | 6 | |
| PAP1420-P10 Plain Bush | 14 | 16 | 20 | 4 | PAP2530-P10 Plain Bush | 25 | 28 | 30 | 6 | |
| PAP1422 P10 Plain Bush | 14 | 16 | 22 | 4 | PAP2540-P10 Plain Bush | 25 | 28 | 40 | 6 | |
| PAP1425-P10 Plain Bush | 14 | 16 | 25 | 4 | PAP2550-P10 Plain Bush | 25 | 28 | 50 | 6 | |
| PAP1432-P10 Plain Bush | 14 | 16 | 32 | 4 | PAP2820-P10 Plain Bush | 28 | 32 | 20 | 6 | |
| PAP1510-P10 Plain Bush | 15 | 17 | 10 | 4 | PAP2825-P10 Plain Bush | 28 | 32 | 25 | 6 | |
| PAP1512P10 Plain Bush | 15 | 17 | 12 | 4 | PAP2828-P10 Plain Bush | 28 | 32 | 28 | 6 | |
| PAP1515P10 Plain Bush | 15 | 17 | 15 | 4 | PAP2830-P10 Plain Bush | 28 | 32 | 30 | 6 | |
| PAP1520-P10 Plain Bush | 15 | 17 | 20 | 4 | PAP3015-P10 Plain Bush | 30 | 34 | 15 | 6 | |
| PAP1525-P10 Plain Bush | 15 | 17 | 25 | 4 | PAP3020-P10 Plain Bush | 30 | 34 | 20 | 6 | |
| PAP1610-P10 Plain Bush | 16 | 18 | 10 | 4 | PAP3025-P10 Plain Bush | 30 | 34 | 25 | 6 | |
| PAP1612P10 Plain Bush | 16 | 18 | 12 | 4 | PAP3030-P10 Plain Bush | 30 | 34 | 30 | 6 | |
| PAP1615-P10 Plain Bush | 16 | 18 | 15 | 4 | PAP3040-P10 Plain Bush | 30 | 34 | 40 | 6 | |
| PAP161GP10 Plain Bush | 16 | 18 | 16 | 4 | PAP3220-P10 Plain Bush | 32 | 36 | 20 | 6 | |
| PAP1620-P10 Plain Bush | 16 | 18 | 20 | 4 | PAP3225-P10 Plain Bush | 32 | 36 | 25 | 6 | |
| PAP1625-P10 Plain Bush | 16 | 18 | 25 | 4 | PAP3230-P10 Plain Bush | 32 | 36 | 30 | 6 | |
| PAP1815-P10 Plain Bush | 18 | 20 | 15 | 4 | PAP3235-P10 Plain Bush | 32 | 36 | 35 | 6 | |
| PAP1818-P10 Plain Bush | 18 | 20 | 18 | 4 | PAP3240-P10 Plain Bush | 32 | 36 | 40 | 6 | |
| PAP1820-P10 Plain Bush | 18 | 20 | 20 | 4 | PAP3515-P10 Plain Bush | 35 | 39 | 15 | 6 | |
| PAP1825-P10 Plain Bush | 18 | 20 | 25 | 4 | PAP3520-P10 Plain Bush | 35 | 39 | 20 | 6 | |
| PAP3525-P10 Plain Bush | 35 | 39 | 25 | 6 | PAP6070-P10 Plain Bush | 60 | 65 | 70 | 8 | |
| PAP3530-P10 Plain Bush | 35 | 39 | 30 | 6 | PAP6530-P10 Plain Bush | 65 | 70 | 30 | 8 | |
| PAP3535-P10 Plain Bush | 35 | 39 | 35 | 6 | PAP6540-P10 Plain Bush | 65 | 70 | 40 | 8 | |
| PAP3540-P10 Plain Bush | 35 | 39 | 40 | 6 | PAP6550-P10 Plain Bush | 65 | 70 | 50 | 8 | |
| PAP3550-P10 Plain Bush | 35 | 39 | 50 | 6 | PAP6560-P10 Plain Bush | 65 | 70 | 60 | 8 | |
| PAP3635-P10 Plain Bush | 36 | 40 | 35 | 6 | PAP6565-P10 Plain Bush | 65 | 70 | 65 | 8 | |
| PAP3720-P10 Plain Bush | 37 | 41 | 20 | 6 | PAP6570-P10 Plain Bush | 65 | 70 | 70 | 8 | |
| PAP3730-P10 Plain Bush | 37 | 41 | 30 | 6 | PAP7030-P10 Plain Bush | 70 | 75 | 30 | 8 | |
| PAP4020-P10 Plain Bush | 40 | 44 | 20 | 8 | PAP7040-P10 Plain Bush | 70 | 75 | 40 | 8 | |
| PAP4025-P10 Plain Bush | 40 | 44 | 25 | 8 | PAP7050-P10 Plain Bush | 70 | 75 | 50 | 8 | |
| PAP4030-P10 Plain Bush | 40 | 44 | 30 | 8 | PAP70G0-P10 Plain Bush | 70 | 75 | 60 | 8 | |
| PAP4040-P10 Plain Bush | 40 | 44 | 40 | 8 | PAP7065-P10 Plain Bush | 70 | 75 | 65 | 8 | |
| PAP4050-P10 Plain Bush | 40 | 44 | 50 | 8 | PAP7070-P10 Plain Bush | 70 | 75 | 70 | 8 | |
| PAP4520-P10 Plain Bush | 45 | 50 | 20 | 8 | PAP7080-P10 Plain Bush | 70 | 75 | 80 | 8 | |
| PAP4525-P10 Plain Bush | 45 | 50 | 25 | 8 | PAP7540-P10 Plain Bush | 75 | 80 | 40 | 9.5 | |
| PAP4530-P10 Plain Bush | 45 | 50 | 30 | 8 | PAP7560-P10 Plain Bush | 75 | 80 | 60 | 9.5 | |
| PAP4535-P10 Plain Bush | 45 | 50 | 35 | 8 | PAP7575-P10 Plain Bush | 75 | 80 | 75 | 9.5 | |
| PAP4540-P10 Plain Bush | 45 | 50 | 40 | 8 | PAP7580-P10 Plain Bush | 75 | 80 | 80 | 9.5 | |
| PAP4545-P10 Plain Bush | 45 | 50 | 45 | 8 | PAP8040-P10 Plain Bush | 80 | 85 | 40 | 9.5 | |
| PAP4550-P10 Plain Bush | 45 | 50 | 50 | 8 | PAP8050-P10 Plain Bush | 80 | 85 | 50 | 9.5 | |
| PAP5020-P10 Plain Bush | 50 | 55 | 20 | 8 | PAP8055-P10 Plain Bush | 80 | 85 | 55 | 9.5 | |
| PAP5025-P10 Plain Bush | 50 | 55 | 25 | 8 | PAP8060-P10 Plain Bush | 80 | 85 | 60 | 9.5 | |
| PAP5030-P10 Plain Bush | 50 | 55 | 30 | 8 | PAP8080-P10 Plain Bush | 80 | 85 | 80 | 9.5 | |
| PAP5040-P10 Plain Bush | 50 | 55 | 40 | 8 | PAP80100-P10 Plain Bush | 80 | 85 | 100 | 9.5 | |
| PAP5050-P10 Plain Bush | 50 | 55 | 50 | 8 | PAP8530-P10 Plain Bush | 85 | 90 | 30 | 9.5 | |
| PAP505S-P10 Plain Bush | 50 | 55 | 55 | 8 | PAP8540-P10 Plain Bush | 85 | 90 | 40 | 9.5 | |
| PAP5060-P10 Plain Bush | 50 | 55 | 60 | 8 | PAP8550-P10 Plain Bush | 85 | 90 | 50 | 9.5 | |
| PAP5520-P10 Plain Bush | 55 | 60 | 20 | 8 | PAP8560-P10 Plain Bush | 85 | 90 | 60 | 9.5 | |
| PAP5525-P10 Plain Bush | 55 | 60 | 25 | 8 | PAP8580-P10 Plain Bush | 85 | 90 | 80 | 9.5 | |
| PAP5530-P10 Plain Bush | 55 | 60 | 30 | 8 | PAP8585-P10 Plain Bush | 85 | 90 | 85 | 9.5 | |
| PAP5540-P10 Plain Bush | 55 | 60 | 40 | 8 | PAP85100-P10 Plain Bush | 85 | 90 | 100 | 9.5 | |
| PAP5550-P10 Plain Bush | 55 | 60 | 50 | 8 | PAP9040-P10 Plain Bush | 90 | 95 | 40 | 9.5 | |
| PAP5555 P10 Plain Bush | 55 | 60 | 55 | 8 | PAP9060-P10 Plain Bush | 90 | 95 | 60 | 9.5 | |
| PAP5560-P10 Plain Bush | 55 | 60 | 60 | 8 | PAP9080-P10 Plain Bush | 90 | 95 | 80 | 9.5 | |
| PAP6030-P10 Plain Bush | 60 | 65 | 30 | 8 | PAP9090-P10 Plain Bush | 90 | 95 | 90 | 9.5 | |
| PAP6040-P10 Plain Bush | 60 | 65 | 40 | 8 | PAP90100-P10 Plain Bush | 90 | 95 | 100 | 9.5 | |
| PAP6050-P10 Plain Bush | 60 | 65 | 50 | 8 | PAP9530-P10 Plain Bush | 95 | 100 | 30 | 9.5 | |
| PAP6060-P10 Plain Bush | 60 | 65 | 60 | 8 | PAP9560-P10 Plain Bush | 95 | 100 | 60 | 9.5 | |
| PAP95100-P10 Plain Bush | 95 | 100 | 100 | 9.5 | PAP13050-P10 Plain Bush | 130 | 135 | 50 | 9.5 | |
| PAP10 Plain Bush030-P10 Plain Bush | 100 | 105 | 30 | 9.5 | PAP13060-P10 Plain Bush | 130 | 135 | 60 | 9.5 | |
| PAP10 Plain Bush040-P10 Plain Bush | 100 | 105 | 40 | 9.5 | PAP13080-P10 Plain Bush | 130 | 135 | 80 | 9.5 | |
| PAP10 Plain Bush050-P10 Plain Bush | 100 | 105 | 50 | 9.5 | PAP130100-P10 Plain Bush | 130 | 135 | 100 | 9.5 | |
| PAP10 Plain Bush060-P10 Plain Bush | 100 | 105 | 60 | 9.5 | PAP130130-P10 Plain Bush | 130 | 135 | 130 | 9.5 | |
| PAP10 Plain Bush080-P10 Plain Bush | 100 | 105 | 80 | 9.5 | PAP13530-P10 Plain Bush | 135 | 140 | 30 | 9.5 | |
| PAP10 Plain Bush090-P10 Plain Bush | 100 | 105 | 90 | 9.5 | PAP13560-P10 Plain Bush | 135 | 140 | 60 | 9.5 | |
| PAP10 Plain Bush095-P10 Plain Bush | 100 | 105 | 95 | 9.5 | PAP13580-P10 Plain Bush | 135 | 140 | 80 | 9.5 | |
| PAP10 Plain Bush0100-P10 Plain Bush | 100 | 105 | 100 | 9.5 | PAP14050-P10 Plain Bush | 140 | 145 | 50 | 9.5 | |
| PAP10 Plain Bush0115-P10 Plain Bush | 100 | 105 | 115 | 9.5 | PAP14060-P10 Plain Bush | 140 | 145 | 60 | 9.5 | |
| PAP10 Plain Bush550-P10 Plain Bush | 105 | 110 | 50 | 9.5 | PAP14080-P10 Plain Bush | 140 | 145 | 80 | 9.5 | |
| PAP10 Plain Bush560-P10 Plain Bush | 105 | 110 | 60 | 9.5 | PAP140100-P10 Plain Bush | 140 | 145 | 100 | 9.5 | |
| PAP10 Plain Bush580-P10 Plain Bush | 105 | 110 | 80 | 9.5 | PAP140140-P10 Plain Bush | 140 | 145 | 140 | 9.5 | |
| PAP10 Plain Bush595-P10 Plain Bush | 105 | 110 | 95 | 9.5 | PAP15050-P10 Plain Bush | 150 | 155 | 50 | 9.5 | |
| PAP10 Plain Bush5105-P10 Plain Bush | 105 | 110 | 105 | 9.5 | PAP15060-P10 Plain Bush | 150 | 155 | 60 | 9.5 | |
| PAP10 Plain Bush5110-P10 Plain Bush | 105 | 110 | 110 | 9.5 | PAP15080-P10 Plain Bush | 150 | 155 | 80 | 9.5 | |
| PAP10 Plain Bush5115-P10 Plain Bush | 105 | 110 | 115 | 9.5 | PAP150100-P10 Plain Bush | 150 | 155 | 100 | 9.5 | |
| PAP11030-P10 Plain Bush | 110 | 115 | 30 | 9.5 | PAP150150-P10 Plain Bush | 150 | 155 | 150 | 9.5 | |
| PAP11050-P10 Plain Bush | 110 | 115 | 50 | 9.5 | PAP16050-P10 Plain Bush | 160 | 165 | 50 | 11 | |
| PAP11060-P10 Plain Bush | 110 | 115 | 60 | 9.5 | PAP16060-P10 Plain Bush | 160 | 165 | 60 | 11 | |
| PAP11080-P10 Plain Bush | 110 | 115 | 80 | 9.5 | PAP16080-P10 Plain Bush | 160 | 165 | 80 | 11 | |
| PAP11095-P10 Plain Bush | 110 | 115 | 95 | 9.5 | PAP160100-P10 Plain Bush | 160 | 165 | 100 | 11 | |
| PAP110110-P10 Plain Bush | 110 | 115 | 110 | 9.5 | PAP160160-P10 Plain Bush | 160 | 165 | 160 | 11 | |
| PAP110115-P10 Plain Bush | 110 | 115 | 115 | 9.5 | PAP17050-P10 Plain Bush | 170 | 175 | 50 | 11 | |
| PAP11550-P10 Plain Bush | 115 | 120 | 50 | 9.5 | PAP17060-P10 Plain Bush | 170 | 175 | 60 | 11 | |
| PAP11570-P10 Plain Bush | 115 | 120 | 70 | 9.5 | PAP17080-P10 Plain Bush | 170 | 175 | 80 | 11 | |
| PAP12040-P10 Plain Bush | 120 | 125 | 40 | 9.5 | PAP170100-P10 Plain Bush | 170 | 175 | 100 | 11 | |
| PAP12060-P10 Plain Bush | 120 | 125 | 60 | 9.5 | PAP170170-P10 Plain Bush | 170 | 175 | 170 | 11 | |
| PAP12080-P10 Plain Bush | 120 | 125 | 80 | 9.5 | PAP18050-P10 Plain Bush | 180 | 185 | 50 | 11 | |
| PAP120100-P10 Plain Bush | 120 | 125 | 100 | 9.5 | PAP18060-P10 Plain Bush | 180 | 185 | 60 | 11 | |
| PAP120110-P10 Plain Bush | 120 | 125 | 110 | 9.5 | PAP18080-P10 Plain Bush | 180 | 185 | 80 | 11 | |
| PAP120120-P10 Plain Bush | 120 | 125 | 120 | 9.5 | PAP180100-P10 Plain Bush | 180 | 185 | 100 | 11 | |
| PAP12550-P10 Plain Bush | 125 | 130 | 50 | 9.5 | PAP180180-P10 Plain Bush | 180 | 185 | 180 | 11 | |
| PAP12560-P10 Plain Bush | 125 | 130 | 60 | 9.5 | PAP19050-P10 Plain Bush | 190 | 195 | 50 | 11 | |
| PAP1258GP10 Plain Bush | 125 | 130 | 80 | 9.5 | PAP19060-P10 Plain Bush | 190 | 195 | 60 | 11 | |
| PAP125100-P10 Plain Bush | 125 | 130 | 100 | 9.5 | PAP19080-P10 Plain Bush | 190 | 195 | 80 | 11 | |
| PAP125110-P10 Plain Bush | 125 | 130 | 110 | 9.5 | PAP190100-P10 Plain Bush | 190 | 195 | 100 | 11 | |
| PAP125125-P10 Plain Bush | 125 | 130 | 125 | 9.5 | PAP190120-P10 Plain Bush | 190 | 195 | 120 | 11 | |
| PAP190190-P10 Plain Bush | 190 | 195 | 190 | 11.0 | PAP250100-P10 Plain Bush | 250 | 255 | 100 | 12 | |
| PAP10 Plain Bush050-P10 Plain Bush | 200 | 205 | 50 | 11.0 | PAP250120-P10 Plain Bush | 250 | 255 | 120 | 12 | |
| PAP10 Plain Bush060-P10 Plain Bush | 200 | 205 | 60 | 11.0 | PAP250250-P10 Plain Bush | 250 | 255 | 250 | 12 | |
| PAP10 Plain Bush080-P10 Plain Bush | 200 | 205 | 80 | 11.0 | PAP26050-P10 Plain Bush | 260 | 265 | 50 | 12 | |
| PAP10 Plain Bush0100-P10 Plain Bush | 200 | 205 | 100 | 11.0 | PAP26060-P10 Plain Bush | 260 | 265 | 60 | 12 | |
| PAP10 Plain Bush0120-P10 Plain Bush | 200 | 205 | 120 | 11.0 | PAP26080-P10 Plain Bush | 260 | 265 | 80 | 12 | |
| PAP10 Plain Bush0200-P10 Plain Bush | 200 | 205 | 200 | 11.0 | PAP260100-P10 Plain Bush | 260 | 265 | 100 | 12 | |
| PAP2205O-P2O | 220 | 225 | 50 | 12.0 | PAP260120-P10 Plain Bush | 260 | 265 | 120 | 12 | |
| PAP2206O-P2O | 220 | 225 | 60 | 12.0 | PAP26O26O-P2O | 260 | 265 | 260 | 12 | |
| PAP2208O-P10 Plain Bush | 220 | 225 | 80 | 12.0 | PAP28050-P10 Plain Bush | 280 | 285 | 5O | 12 | |
| PAP22010O-P10 Plain Bush | 220 | 225 | 100 | 12.0 | PAP28060-P10 Plain Bush | 280 | 285 | 60 | 12 | |
| PAP22012O-P10 Plain Bush | 220 | 225 | 120 | 12.0 | PAP28080-P10 Plain Bush | 280 | 285 | 80 | 12 | |
| PAP22022O-P2O | 220 | 225 | 220 | 12.0 | PAP280100-P10 Plain Bush | 280 | 285 | 100 | 12 | |
| PAP24050-P10 Plain Bush | 240 | 245 | 50 | 12.0 | PAP280120-P10 Plain Bush | 280 | 285 | 120 | 12 | |
| PAP24060-P10 Plain Bush | 240 | 245 | 60 | 12.0 | PAP280280-P10 Plain Bush | 280 | 285 | 280 | 12 | |
| PAP24080-P10 Plain Bush | 240 | 245 | 80 | 12.0 | PAP30050-P10 Plain Bush | 300 | 305 | 50 | 12 | |
| PAP240100-P10 Plain Bush | 240 | 245 | 100 | 12.0 | PAP30060-P10 Plain Bush | 300 | 305 | 60 | 12 | |
| PAP240120-P10 Plain Bush | 240 | 245 | 120 | 12.0 | PAP30080-P10 Plain Bush | 300 | 305 | 80 | 12 | |
| PAP240240-P10 Plain Bush | 240 | 245 | 240 | 12.0 | PAP300100-P10 Plain Bush | 300 | 305 | 100 | 12 | |
| PAP25050-P10 Plain Bush | 250 | 255 | 50 | 12.0 | PAP300120-P10 Plain Bush | 300 | 305 | 120 | 12 | |
| PAP25060-P10 Plain Bush | 250 | 255 | 60 | 12.0 | PAP300300-P10 Plain Bush | 300 | 305 | 300 | 12 |
| Outer Diameter D (mm) | Outer diameter tolerances D (mm) | Thickness tolerances SB (mm) | Chamfer dimensions SB (mm) fi (mm) f2 (mm) |
| ≤10 | ’+ 0,055 + 0,025 |
’1 -0,020 -0,045 |
1 0,6 ±0,4 -0,1 -0,4 |
| 10 < ≤18 | ‘+ 0,065 + 0,030 |
‘1 -0,020 -0,045 |
1 0,6 ±0,4 -0,1 -0,4 |
| 18 < ≤30 | ’+ 0,075 + 0,035 |
’1.5 - 0,025 -0,055 |
1.5 0,6 ±0,4 -0,1 -0,6 |
| 30 < ≤50 | ‘+ 0,085 + 0,045 |
‘2 -0,030 -0,065 |
2 1,2 ±0,4 -0,1 -0,7 |
| 50 < ≤80 | ’+ 0,100 + 0,055 |
’2,5 -0,040 -0,085 |
2,5 1,8 ±0,6 -0,2 -1.0 |
| 80 < ≤120 | ‘+ 0,120 + 0,070 |
‘2,5 -0,040 -0,085 |
2,5 1,8 ±0,6 -0,2 -1.0 |
| 120 < ≤ 180 | ’+ 0,170 + 0,100 |
’2,5 -0,040 -0,085 |
2,5 1,8 ±0,6 -0,2 -1,0 |
| 180 < ≤ 305 | ‘+ 0,255 + 0,125 |
‘2,5 -0,040 -0,085 |
2,5 1,8 ±0,6 -0,2 -1.0 |
• POM provides maintenance free operation • POM has a high pv capability • POM exhibits low wear rate • Seizure resistant • Suitable for temperatures from -40 to +120 °C • High static and dynamic load capacity • Good frictional properties • No water absorption and therefore dimensionally stable • Compact and light • Suitable for rotating, oscillating, reciprocating and sliding movements • POM bearings are prefinished and require no machining after assembly

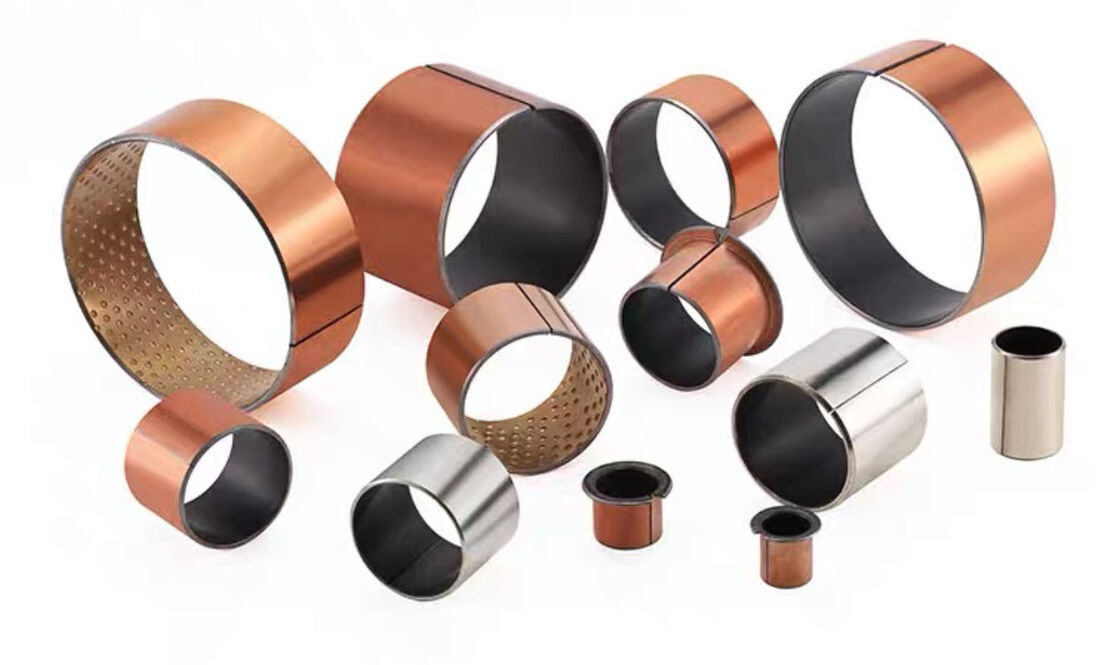

These POM Bush Bearings are widely used in the Machinery Industry
(Inside Diameter x Outside Diameter x Length)
POM composite bushings are referred to as prelubricated because their material is designed to operate with marginal lubrication. These bushing type effectively fills the gap between fully lubricated and dry sliding bushings.We offer a wide range of straight POM composite bushings. The advantages of these sleeves are:
• maintenance-free operation
• very good frictional properties
• high load capacity
• high sliding speed
• low working clearance
• Marginally lubricated bearing material for grease or oil lubricated
applications
• Standard parts contain grease indents in the sliding layer; plain
sliding layer available by request
• Optimum performance under relatively high loads and low speeds
• Suitable for linear, oscillating and rotating movements
• Wide range of parts available from stock
Pom Composite lubricated bushing can be used for grease or oil lubrication applications, or in an oil-free environment
The standard parts contain grooves in the sliding layer of the contact parts, which can store grease or friction debris.
Smooth sliding layer can be designed and provided upon request
Composite bearing sleeve has the best performance under relatively high load and low speed, and the highest relative life
Composite bearings are used in environments of linear, oscillating and rotational motion
All kinds of bearing parts are available from stock
1. With high mechanical strength and rigidity;
2. The Maximum fatigue strength;
3. Good environmental resistance and organic solvent resistance;
4. Strong resistance to sustained impact;
5. Widely used temperature ranges from -40℃ to 120℃.
6. Good electrical properties.
7. Good recovery.
8. with their own lubrication, good wear to hold;
9. Excellent dime
Melting point of 175 ° C
Density 1.42 g/mL at 25 °C
Flash point 158 °F storage condition 2-8°C
| Performance indicators | Date | |
| Maximum load | Static load | 250N/mm² |
| Dynamic load | 150N/mm² | |
| Maximum linear velocity V | Grease lubrication | 2.5m/s |
| High PV value | Grease lubrication | 2.8N/mm²・m/s |
| Coefficient of friction | Grease lubrication | 0.05~0.25 |
| The use of temperature | -40℃～+130℃ |
|
| Coefficient of thermal conductivity | 4W/m・K | |
| Coefficient of thermal expansion | 12×10-6/K | |
The noise of traditional bearing, short maintenance cycle and service life, and high maintenance cost limit the normal operation time of equipment, especially transportation equipment and field operation equipment. The application of VIiPlUS POM BUSHING self-lubricating bearing can not only solve these problems, but also improve the comfort level of equipment operation.For example, the use of lubricating oil or one-time painting can solve the process maintenance and high shutdown costs, while avoiding environmental pollution.Reliable, light and excellent bearing solutions Pom Composite Bushing,Pom Bushings,Pom Sleeve Bushing
he railway, The inter-city rail, shipbuilding, space, Forklift truckT
Viiplus provides the railway and other rail transport industry with gear boxes, motor suspension system and POM BUSHING components.
Today, viiplus light and maintenance-free bearings are used by all major commercial and military aircraft manufacturers and tier 1 suppliers for fixed and rotary wing aircraft. Our bearing solutions are used in a wide range of aeronautical applications, from the landing gear, to flight control and engines, to a variety of customized applications in the passenger and aerospace seats sector.
Our aircraft bearing solutions are used in a variety of aerospace applications from landing gear, flight control and engines to passenger seats, as well as in a wide variety of customizations for the aerospace industry
Click here for PDF for more product information
video
video
video
video
video
