| Brand Name: | Bronze Groove Bearings |
| Model Number: | Sleeve bearing Solid turned bronze bushing |
| MOQ: | MATE-TO-ORDER CUSTOM BUSHINGS |
| Price: | Sliding Bronze Bearing Dimensions Tolerance,Stock Price |
| Payment Terms: | T/T, |
| Supply Ability: | STANDARD TOLERANCE BUSHINGS |
The Bronze RG10 equivalent is a type of cast bronze groove bearing that offers excellent wear resistance and mechanical properties. This bearing is commonly used in various industrial applications where high loads and speeds are encountered.
The cast bronze material used in RG10 bearings provides good corrosion resistance and durability, ensuring reliable performance even in harsh environments. The groove design allows for easy installation and replacement, reducing maintenance efforts and downtime.
In terms of equivalent or comparable bearings, it is important to note that different manufacturers may have their own specific designations and material compositions for similar products. Therefore, when searching for an equivalent to Bronze RG10, it is recommended to consult with bearing suppliers or manufacturers to find a suitable alternative that meets your specific requirements.
Overall, Bronze RG10 and its equivalents are reliable and durable bearings suitable for use in a wide range of industrial applications. Their cast bronze construction and groove design make them an excellent choice for handling high loads and speeds while providing smooth and efficient operation.
The bronze alloy Rg10 is a tin-based cast bronze material commonly used in applications such as bushings and bearings due to its excellent resistance to corrosion, abrasion, and good machinability. Below is a summary of its equivalent grades and related information based on the search results:
Rg10 Equivalent Grades
DIN Standard: Rg10 is classified under DIN 17656 and DIN 17051115.
International Equivalents:
BrO10TS2 (БрО10Ц2): This is the Russian equivalent grade for Rg10, specifically for tin foundry bronzes11.
EN 1982: Rg10 is also referenced under the European standard EN 1982 as CuSn10, which indicates a composition of 10% tin and the remainder copper15.
BS 1400: In British standards, Rg10 is equivalent to C9050015.
ASTM B 271: Rg10 aligns with CuSn10 under ASTM standards15.
Applications
Rg10 is primarily used for machine parts, such as bushings and bearings, especially those operating under static loads and normal temperatures. Its properties make it suitable for applications requiring durability and resistance to wear7.
Composition and Properties
Primary Composition: Rg10 typically consists of 10% tin (Sn), with the remainder being copper (Cu). This composition provides a balance of strength, corrosion resistance, and machinability15.
Additional Elements: Some variations may include small amounts of zinc (Zn) or lead (Pb) to enhance specific properties like machinability or wear resistance15.
Manufacturing and Standards
Production: Rg10 is produced through casting processes, particularly centrifugal casting, which is suitable for cylindrical or hollow components like bearings and bushings15.
Standards: It adheres to multiple international standards, including DIN, EN, BS, and ASTM, ensuring its compatibility and quality across different regions1115.
Cast Bronze Groove Bearing VIIPLUS
C93700(SAE64 CuSn10Pb10 RG10)Bronze Bushings, Cast Bearing for Heavy Loads
C93700(SAE64 CuSn10Pb10 RG10)Bearings, High-Load-Capacity & Corrosion Resistant
Leaded Tin Bronze Alloys Bearings, Self-Lubricating Bronze Bushing for Agricultural
Common Cast Bearings, Tight Tolerance & Cost-Effective Solutions
Copper Alloy Range & Specifications,Download Catalog for Online Sale
Copper Alloy Range & Specifications
Common Cast Bearings (nonproprietary) - Product Forms - Size Range
Leaded Tin Bronze Alloys Bearings
C92200, C92300, C92310, C92410, C92700, C92900, C93100, C93200, C93300, C93400, C93600, C93700, C93800, CuPb10Sn, CuPb15Sn, CuSn6Zn4Pb, CuSn7ZnPb, CuSnPbZn, Rg5, Rg7 BRONZE BEARINGS
Catalog,Online Sale,made to order from china.Standard Size and custom Dimensions,Request A Onlince Catalog.
VIIPLUS offers a growing portfolio of engineered bronze bearings and groove bronze bushings products and services to keep industries moving efficiently and reliably.
You have access to the latest downloads here. Click on the self lubricating bronze bushing for agricultural.pdf catalog symbol to display the file, and download the self-lubricating bushing bearings catalog file.
| Chemical Requirements | ||||||||||||
| Copper Alloy UNS No. |
Composition, % max, except as indicated | |||||||||||
| Nickel | ||||||||||||
| Copper | Tin | Lead | Zinc | Iron | Including | Aluminum | Manganese | Antimony | Sulfur | Phosphorus | Silicon | |
| Cobalt | ||||||||||||
| C86300 | 60.0–66.0 | 0.20 | 0.20 | 22.0–28.0 | 2.0–4.0 | 1.0A | 5.0–7.5 | 2.5–5.0 | ... | ... | ... | ... |
| C90500 | 86.0–89.0 | 9.0–11.0 | 0.30 | 1.0–3.0 | 0.20 | 1.0A | 0.005 | ... | 0.20 | 0.05 | 0.05B | 0.005 |
| C91100 | 82.0–85.0 | 15.0–17.0 | 0.25 | 0.25 | 0.25 | 0.50A | 0.005 | ... | 0.20 | 0.05 | 1.0B | 0.005 |
| C91300 | 79.0–82.0 | 18.0–20.0 | 0.25 | 0.25 | 0.25 | 0.50A | 0.005 | ... | 0.20 | 0.05 | 1.0B | 0.005 |
| C93700 | 78.0–82.0 | 9.0–11.0 | 8.0–11.0 | 0.8 | 0.7C | 0.50A | 0.005 | ... | 0.50 | 0.08 | 0.10B | 0.005 |
| A In determining copper minimum, copper may be calculated as copper plus nickel. | ||||||||||||
| B For continuous castings, phosphorus shall be 1.5 % max. | ||||||||||||
| C Iron shall be 0.35 % max. when used for steel-backed. | ||||||||||||
C93700(SAE64 CuSn10Pb10 RG10)Bronze Bushings
C93700(SAE64 CuSn10Pb10 RG10 Bearings Material
| Cu | Sn | Pb | Zn | Fe | Ni | Sb | P | S | Al | Mn | Si | |
| 79.00-82.00 | 9.00-11.00 | 8.00-11.00 | 0.8 | 0.7 | 0.5 | 0.5 | 1.5 | 0.08 | 0.005 | N/A | 0.005 |
Mechanical properties:
| Tensile Strength (min) | Yield Strength (at .5% extention under load min) | Elongation (in 2in. or 50mm min, %) | Brinell Hardness (min) | Remarks | ||
| Ksi | MPa | Ksi | MPa | |||
| 35 | 241 | 20 | 138 | 6 | 55 | |

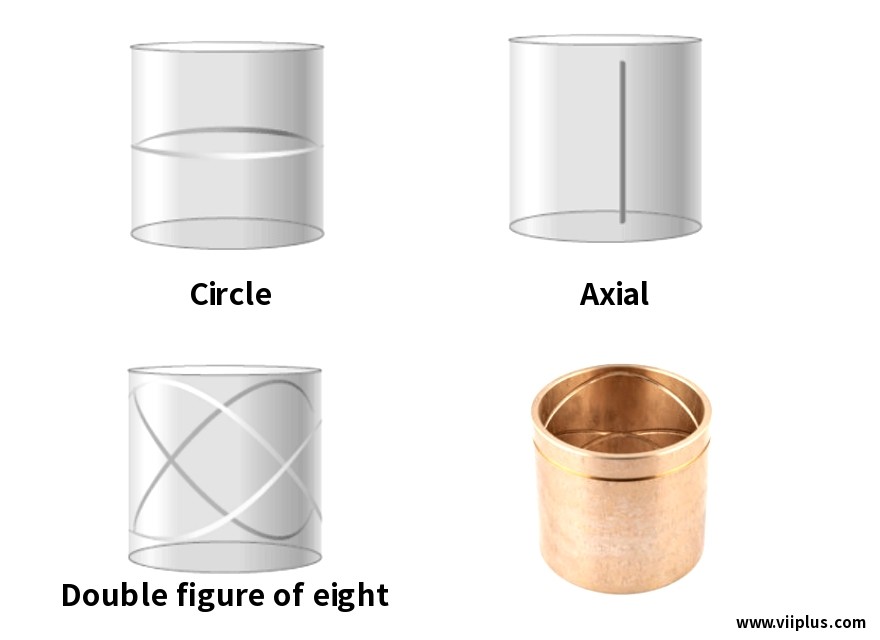

There are different shapes and geometries of grooves which should be used according to the type of lubricant and movement.
| Axial |
| Circumferential |
| Helical |
| Oval |
| Double oval |
| Figure of eight |
| One and a half figure of eight |
| Double figure of eight |
| Duplex figure of eight |
*Grooves can be closed or open on one or both sides.
Oil Grooved in Cast Bronze Bearings & Spiral Sleeve Bushings made in China Custom Machined Services: Meeting All Your Needs
We Manufacturing Bronze Bushing. From using graphite as a lubricant in custom machined parts to grooving to create a new or improve an existing part, our custom machined services bring your vision to life.Turning/Boring/Grooving/Facing/Milling/Drilling/Grinding/Deburring.Our machining service provides value-added to a full range of steel grade solutions, from steel material to semi-finished or finished components. Our workshop machining capabilities include CNC lathing, milling, grinding, drilling, high speed machining, surface treatment and so on.
VIIPLUS offers a variety of different bronze alloys in combination with know-how and a high level of service. Different factors determine the choice of alloy. Operating environment, load-bearing capacity and costs are just a few. Dimension the largest inventory of bearing solutions for bronze alloys tailored to your needs. Timely delivery is one of our priority goals within the company. Get a qoute now.
We specialize in sheet metal self-lubrication bearing and manufacturing, stamping bushings, industrial components, die castings bronze bearing , plastic bearing bushings and custom sliding bearings products.Graphite as a lubricant in custom machined parts such as bushings and bearings.grooved type bronze bushing online:Single Loop/Figure Eight/One Straight
And One Circular/Double Loop/Circular Groove/Straight Groove/R.H. And L.H. Spiral Double Figure Eight.
| Bearing ID (mm) |
R (groove) (mm) |
r (chamfer) (mm) |
H (depth of groove) (mm) |
Number of grooves |
| 30 or less | 1.5 | 1.5 | 1.2 | 1 to 2 |
| 30 to 50 | 1.6 | 1.6 | 1.3 | 1 to 3 |
| 50 to 80 | 1.7 | 1.7 | 1.4 | 1 to 4 |
| 80 to 120 | 1.8 | 1.8 | 1.5 | 1 to 5 |
| 120 to 180 | 1.9 | 1.9 | 1.6 | 1 to 6 |
| 180 to 250 | 5.0 | 5.0 | 6.0 | 5 |
| 250 to 315 | 6.0 | 5.1 | 6.1 | 6 |
| 315 to 400 | 7.0 | 5.2 | 6.2 | 7 |
| 400 to 500 | 8.0 | 5.3 | 6.3 | 8 |
VIIPLUS bronze bushings exhibit wear properties up to four times greater than OEM bushings due to the use of improved materials. This higher level of quality is required for bronze bushings to match shafts, both in performance and longevity of parts. Greater lubrication is also present on bronze bushings to ensure you get a solution specifically tailored to your needs. Wh you want a straight bushing or grease-modified flanged bushing, the material size and bronze bushes available in VIIPLUS arsenal will ensure you get what you need.
VIIPLUS Industries has supplied high quality bronze bushings for grooves all over the world. With quality and precision, you can also find our alloy and bronze bushings with the same tenacity and engineering characteristics that you would expect. With an exceptional fit and durability on the sliding bushes, expect to get unprecedented hours on your machine.
Standard material CuSn12.Additional Alloys: CuSn7ZnPb (RG7), CuSn10, CuSn12, CuPb10Sn, CuPb15Sn, CuAl10Ni, CuSn10Zn (RG10), CuZn25Al5, CuSn5ZnPb (RG 5)
We are manufacturers and distributors of Cast bronze bushings, steel bushes,custom bronze bearings, mould industry bushing parts and various C86300,C95400,C93200 Bronze Graphite Bushings.
Cast Bronze Bushing Drawing parts and special sizes can produced upon order.
Cast Bronze Bushing Shapes & forms
Bearing forms available in standard dimensions
Bushings Plain Bearings and Sleeve Bearings:Mining equipment, crane manufacturing, marine and offshore industry, hydraulic cylinders, construction equipment, vehicle manufacturing
– Suitable for high loads
– Multiple areas of us (universal bearing)
– Long life
– Wide temperature range
Housing ØBased on customer’s requirement
Bushing inner-Ø after mountingBased on customer’s requirement
Shaft toleranceBased on customer’s requirement
Housing: Chamfer min. 1.5 mm x 15-45°, for easy bushing alignment
Shaft: Chamfer 5 mm x 15°, for easy insertion of the shaft
Start Your Project With An Application Engineer
with Trial order or Urgent delivery
The major airlines that specializes in courier shipping from China include DHL, FedEx,TNT,EMS and UPS.
Express shipping
Your self-lubricating bronze bushing bearings parts will arrive faster by using courier shipping than it would have taken if you had chosen other options.
CAPTION: Special dimensions and imperial sizes are available on request.
* For higher requirements – e.g. higher temperature ranges – different materials are available in this category.
** The listed values in the material properties are valid for optimal operating conditions. By changing the conditions of application, e.g. an increase in the sliding speed or strain, these values could shift.
