Fiberglass or 316 stainless steel bushings with (Polytetrafluoroethylene) lining are essential components in composite piping systems. These bushings provide superior performance in a wide range of industrial applications due to their unique combination of materials and design.

Fiberglass bushings are known for their excellent strength-to-weight ratio, corrosion resistance, and dimensional stability. When combined with a lining, they offer superior wear resistance and low friction coefficients, making them suitable for high-speed and high-pressure applications. Fiberglass bushings are often used in chemical processing, pulp and paper, and other demanding industries.

316 stainless steel bushings, on the other hand, offer superior corrosion resistance and durability. Their strength and resilience make them ideal for applications in harsh environments, such as those involving saltwater, acids, and other corrosive media. The addition of a lining further enhances their wear resistance and reduces friction, extending the bushings' service life.

Composite piping systems that utilize fiberglass or 316 stainless steel bushings with lining are often chosen for their reliability, durability, and cost-effectiveness. These bushings can be customized to fit specific applications, ensuring optimal performance and efficiency. Wh you're looking for bushings for a new piping system or replacements for worn-out components, fiberglass or 316 stainless steel bushings with lining are excellent choices.

The Most Widely Used Composite Bushings Today. Meets Your bushing material Requirements & customized. Contact Sales Today! Quote Support. Global Locations.

Composite Piping Systems Bushings.

Crane Tiedown Assemblies Bushing

We are fully committed to providing quality self-lubricating bearing & bushings that meet the Health, Safety and Environmental requirements of our clients. We regularly review our quality management system and accommodate the changes to enhance our existing work process.
Hardened Stainless Steel Bushings
Self-Lubricating Bearings /Kevlar Woven Liners bushings


Bearings: Fiberglass and 316 stainless steel with TFE lining

Ductile iron butterfly valves bushings –Fiberglass or 316 stainless steel with lining | Vibration Isolation Air Handling Unit (AHU) Drop

Featuring the highest load capacity maintenance-free bearings in the Industry


Stainless Steel Self-Lubricating Bearing


The fabric self-lubricating liner is the key factor in the performance of self-lubricating spherical bearings with a heavy load, impact resistance, and long life, and so on.

Woven glide bearing use the fibers fabric and aramid fiber overlay on metal backings, the fabric has very high load capacity and high accuracy good run with low speed and heavy friction superior performance, widely used in heavy equipment like construction machinery, agriculture machinery.

1. with oil fiber can protect the shaft, while the machine in operation.
2. It is of low friction coefficient, good anti-wear.
3. Good running in the property.
4. It fits well in the motion of circumgyration, swaying, and to-and-fro.
5. Good anti-corrosion.
6. It can be used in food machines, pharmaceuticals etc, due to lead-free.
7. It is mainly used in the condition of strong acid and alkali, such as chemical
Industry, pumps, valves etc.

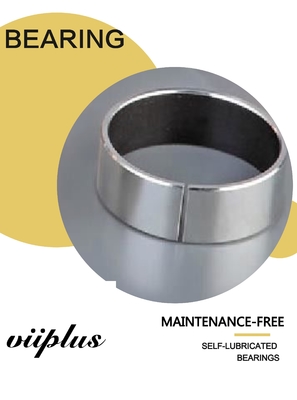

Plain Bearings and Sleeve Boccole Self-Lubricating Bearings, Valve Bush Woven Fabric Stainless Steel 316 Bushes|VSB-36


The relationship between the tribological properties of the bearing and the film-forming properties of transfer film formed by the liner was studied. There is a certain correspondence between the tribological performance of bearings and the film-forming performance of transfer film formed in the process of friction and wear, that is, the faster the formation of transfer film, the better the wear resistance and uniform continuity, and the better the tribological performance of the film formed by friction and wear.

TEX Bushing Customized Bushing Fiber Bush


Plain Bearings and Sleeve Bearings Self-Lubricating Bearings, Liner Type Non-Metallic woven Stainless Steel 316 with fabric

Stainless steel 316 and steel-base polytetrafluoroethylene aramid fiber braid bearings are self-lubricating materials with wear-resistant fibers as the main surface material.The product has low friction coefficient, good bearing capacity, abrasion resistance and self-lubrication performance, mainly used in various high-grade valves and go-kart.



VSB-36 Bushing  slide bearing bushings, oilless plain bearing

Stainless Steel316+/FABRIC
Apply to the oil or fuel work harder parts,wear resistance,low coefficient of ftiction,long life:good overall performance.Apply to the oil or fuel work harder parts,wear resistance,low coefficient of friction,long life;good iverall perfotmance.
VSB-36 Bushing

Stainless Steel316+/FABRIC
is of oil resistant, acid resistant, alkali resistant and seawater resistant, more over, there is no lead in the surface layer and so is particularly fit for application in food machinery, alkali flow meters, pumps motion elements in pharmaceutical machines, printing machines chemical engineering machines and other ocean industry. The bushing is a triple layers composites one, the base material is stainless steel back and a film of heat resistant power filled being calendered onto the sintered spherical bronze interlayer.

Technical Data

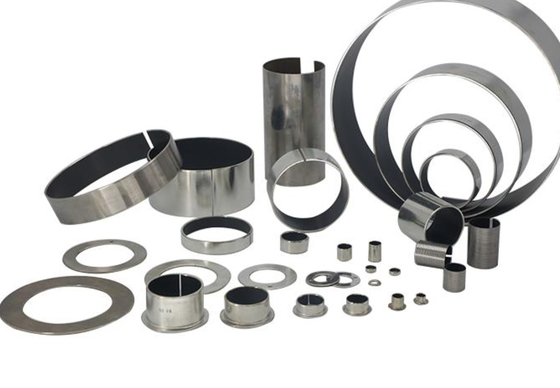

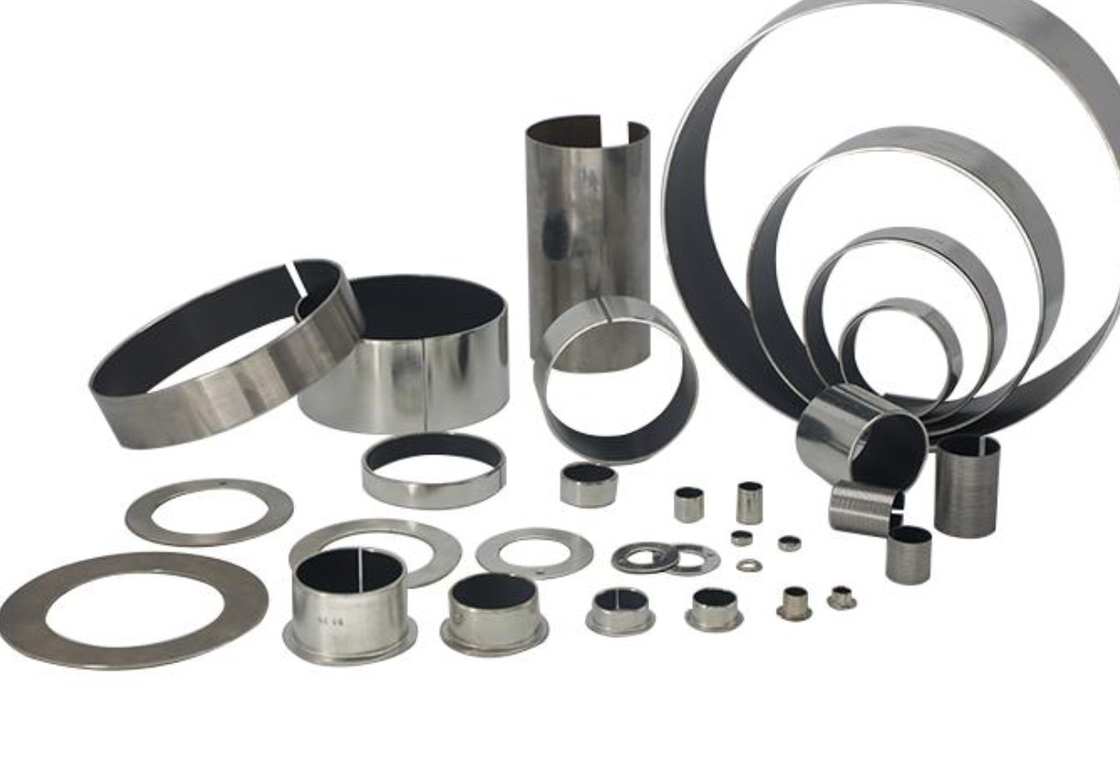

Bearing forms available in standard dimensions
· Cylindrical bushes
· Flanged bushes
· Sliding plates
· Thrust washers
· Flanged washers


Basic advantages of Stainless Steel 316 fabric bushings


Advantages

Have A Higher Carrying Capacity.
High-Temperature.
Longer Life.

Typical Applications

VIIPLUS bearing is a leading self-lubricating bearing manufacturer and supplier in China. We are highly proficient in the production of various self-lubricating bearings, bushes, and the sliding blocks, etc. Our main product catalogue now includes the oilless self-lubricating bearing, composite bearing, copper bearing, wrapped bronze bearing, bimetallic bearing, thermoplastic bushes, and more. All our products are characterized by reliable performance and low price. They are very popular and widely applicable in different industries including the automobile, machine tools, moulds, metallurgical machinery, mining machinery, textile machinery, hoisting machinery, construction machinery, printing machines, irrigation machinery, injection molding machines, food machinery, ports, marine machinery, and the agricultural and forestry machinery, etc.

Low friction woven fabric oilless bearing VSB-36 TEX is widely used in high temperature production lines, construction machinery, automobile chassis parts, ball valves, butterfly valves, pumps and chemical industries and high-speed trains and other heavy low and cannot refuel occasion etc.


Packaging & Delivery

Packaging Details:CARTON or PALLET
Port:SHANGHAI,NINGBO,ETC.
