Metallic-Bronze Bushing-bearing

Oilless Bushing (Examples) I.D. is 25mm, O.D. is 33mm, and length is 20mm.
SPB - 253320

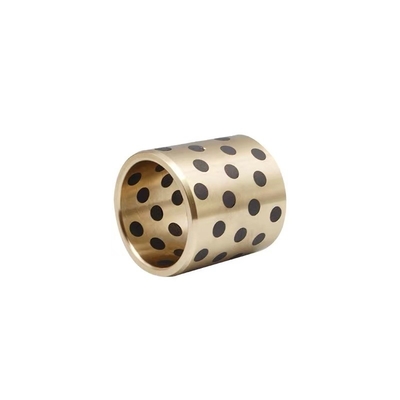

Solid lubricant plain bearings are made from wear-resistant copper alloys with inserts made from solid lubricant.

Bronze Bushing 500SP1-SL1

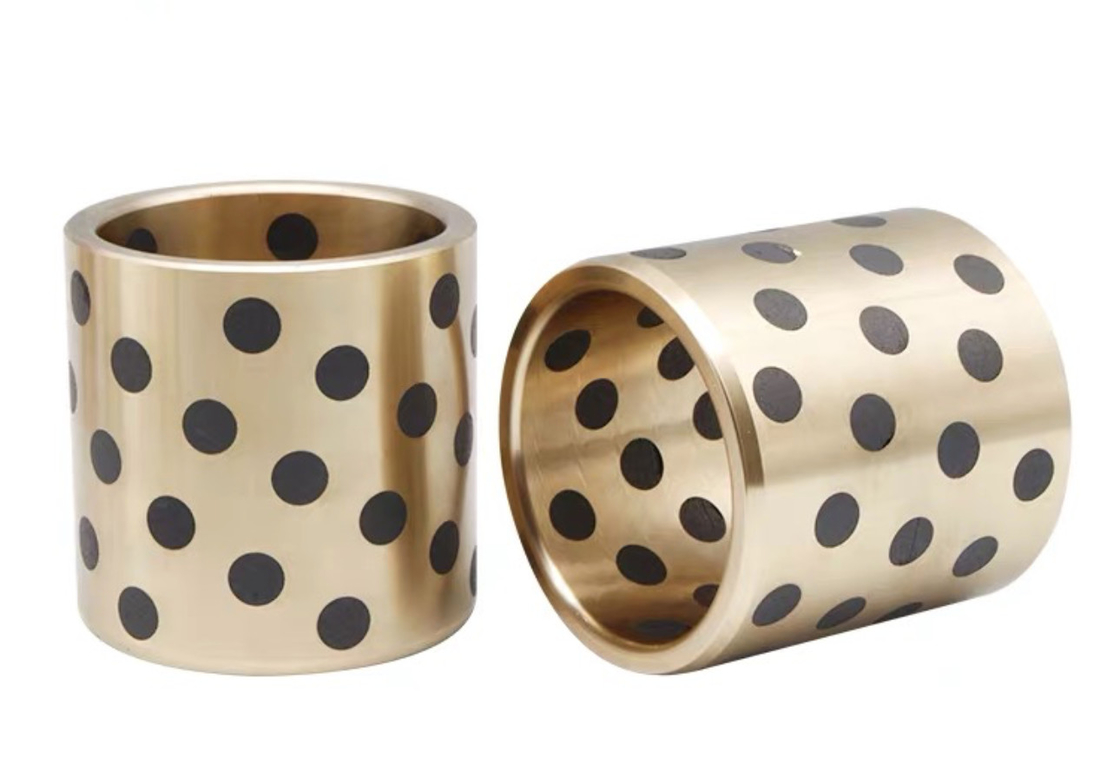

High-strength brass bearings with embedded solid lubricant

Metallic bearings having been used widely

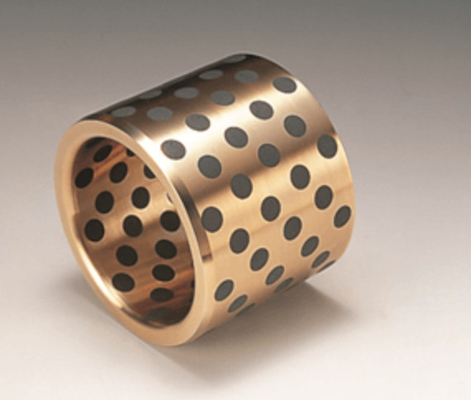

The Bronze Bushing 500SP1 series are self-lubricating bearings composed of highstrength brass alloy bases made with advanced casting technology and embedded solid lubricants. They may be combined with various types of solid lubricants according to the conditions of use.



Service range
Lubrication conditions	Dry	Periodic lubrication
Service temperature range (℃)	-40～+300	-40～+150
allowable max. contact pressure : P (N/mm2)	29	29
allowable max. velocity : V (m/s)	0.50	1.00
Allowable max. PV value (N/mm2・m/s)	1.65	3.25

Oilless Bush
SR.NO.	DRG.No.	No	Name	QTY	Spec.Model	Maker
1	012-203	15	OILLES BUSH	2	SPB-506040	OILLESS
2	012-204	15	OILLESS BUSH	2	SPB-405040	OILLESS
3	012-204	18	OILLESS BUSH	1	SPB-405050	OILLESSS
4	012-205	2	OILLESS BUSH	4	SPB-506040	OILLESS
5	012-252	14	OILLESS BUSH	30	SPB-202810	Bronze Bushing
6	012-255	5	OILLESS BUSH	10	30S-60110	Bronze Bushing
7	012-255	18	OILLESS BUSH	2	30S-60110	OILLESS
8	012-257	11	OILLESS BUSH	3	SPB-5065100	OILLESS
9	012-285	6	OILLESS BUSH	6	SPB-354535	OILLESS
10	012-285	28	OILLESS BUSH	12	SPB-202830	OILLESS
Oilless flange bush
11	012-250	5	OILLESS FLANGE BUSH	6	SPF-2530	Bronze Bushing
12	012-255	3	OILLESS FLANGE BUSH	6	SPF-3550	Bronze Bushing
13	012-255	16	OILLESS FLANGE BUSH	8	SPF-4560	OILLESS
14	012-256	15	OILLESS FLANGE BUSH	6	SPF-4050	OILLESS
15	012-257	13	OILLESS FLANGE BUSH	6	SPF-5050	OILLESS
16	012-285	26	OILLESS FLANGE BUSH	6	SPF-1210	OILLESS
Oilless Flat Plate
17	012-251	12	OILLESS FLAT PLATE	6	SFP-1875	Bronze Bushing
18	012-258	4	OILLESS FLAT PLATE	24	SFP-28100	Bronze Bushing
19	012-258	5	OILLESS FLAT PLATE	12	SFP-28100

Advantages of oil-free self-lubricating bearings

1. No oil lubrication or less oil lubrication, suitable for refueling or difficult to refueling places, can be used in no maintenance or less maintenance;

2. Good wear resistance, small friction coefficient and long service life;

3. There is an appropriate amount of elastoplastic, can distribute the stress on a wider contact surface, improve the bearing capacity;

4. The static and dynamic friction coefficient is similar, which can eliminate the creep at low speed, so as to ensure the working accuracy of the machine;

5. It can reduce the vibration, noise and pollution of machinery;

6. Transfer film can be formed in the operation process to protect the grinding shaft, without shaft biting phenomenon;

7. For grinding shaft hardness requirements are low, the shaft without conditioning can be used, reduce the processing difficulty of related parts;

8. Thin wall structure, light weight;

9. Bushing can be used in corrosive media.

The arrangement of these solid lubricant deposits is adapted to the intended sliding movement. They serve, on the one hand, to deliver the lubricant to the sliding partner and, on the other hand, to absorb dirt particles in the bearing.

properties

• maintenance-free or low-maintenance operation
• no washing out of the lubricant possible
• high loads possible
• long maintenance intervals
• high-temperature range
• insensitive to dirt
• corrosion-resistant

The standard material for plain bearings with solid lubricant  For special parts, however, other copper alloys are also possible on request, e.g.

• (standard) special brass
• Rg7 = Rotguss / Lagerbronze (Rg7)
• Aluminum bronzes
• Lagerbronze CuSn12

The solid lubricant used, based on graphite and additives, is ideally suited for general use and normal atmospheres.

For applications in which the bearings are exposed to water or seawater, there is a special solid lubricant based on MoS2 and as well as other additives.
